M520 - High Capacity truss range including compact folding option

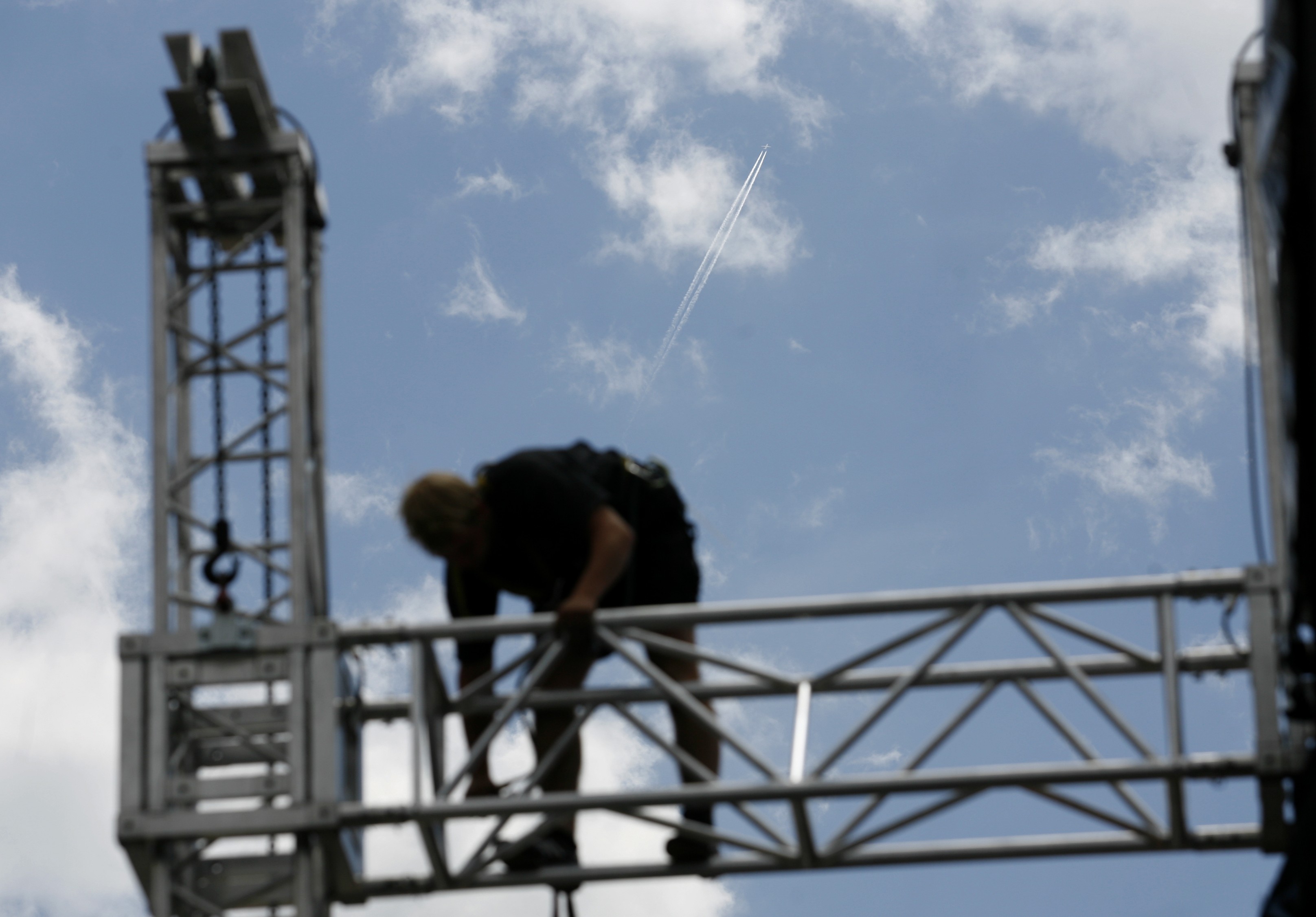

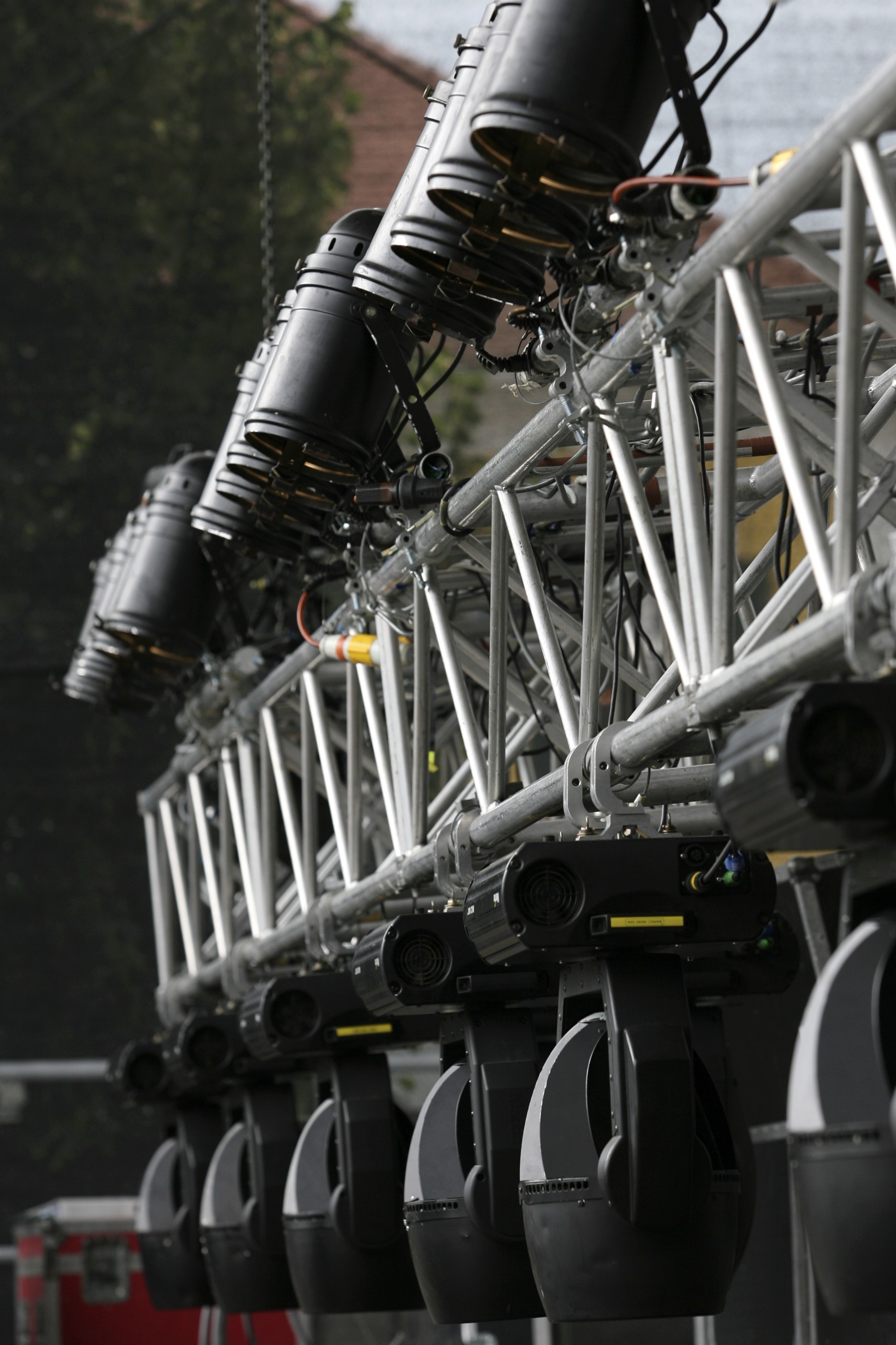

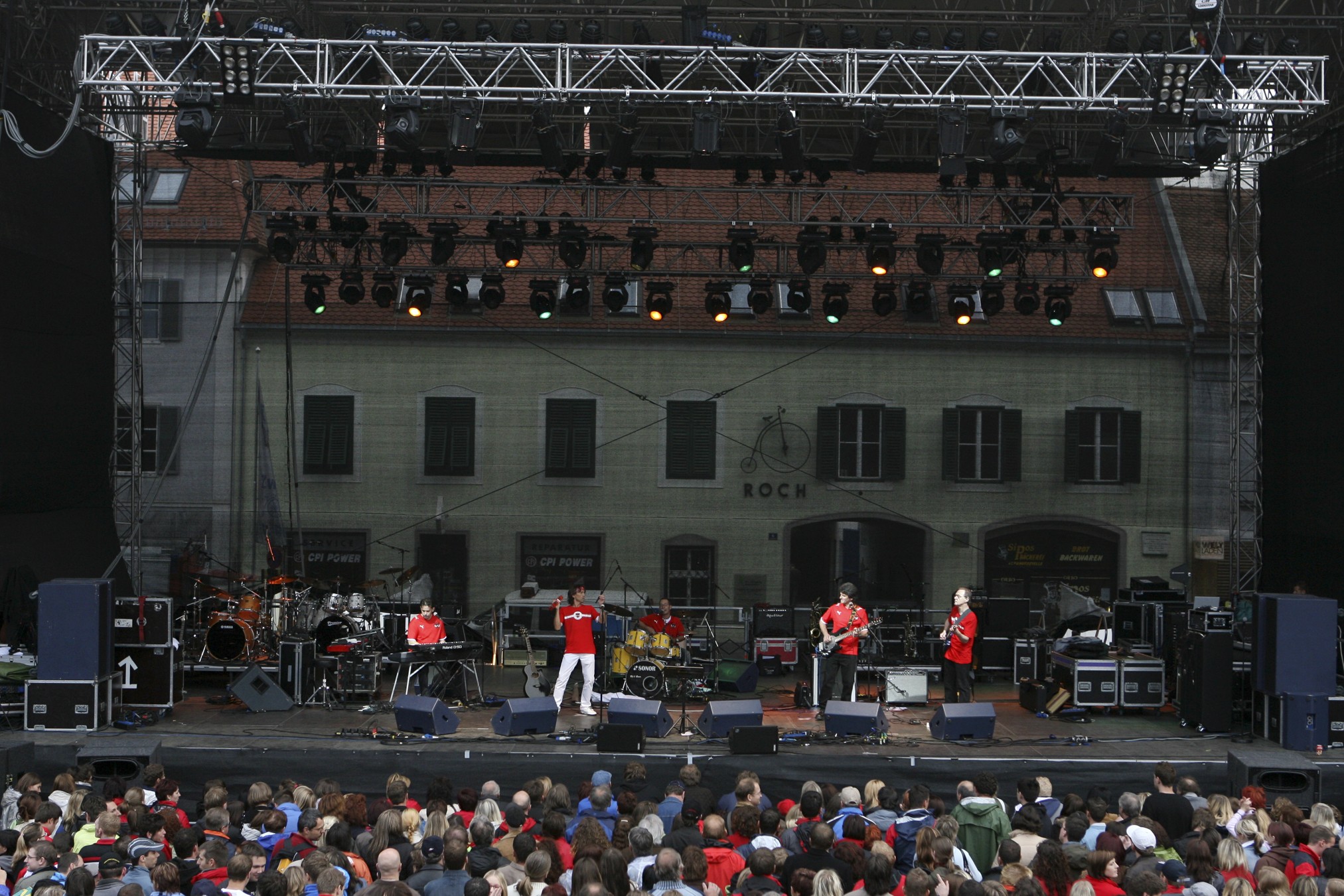

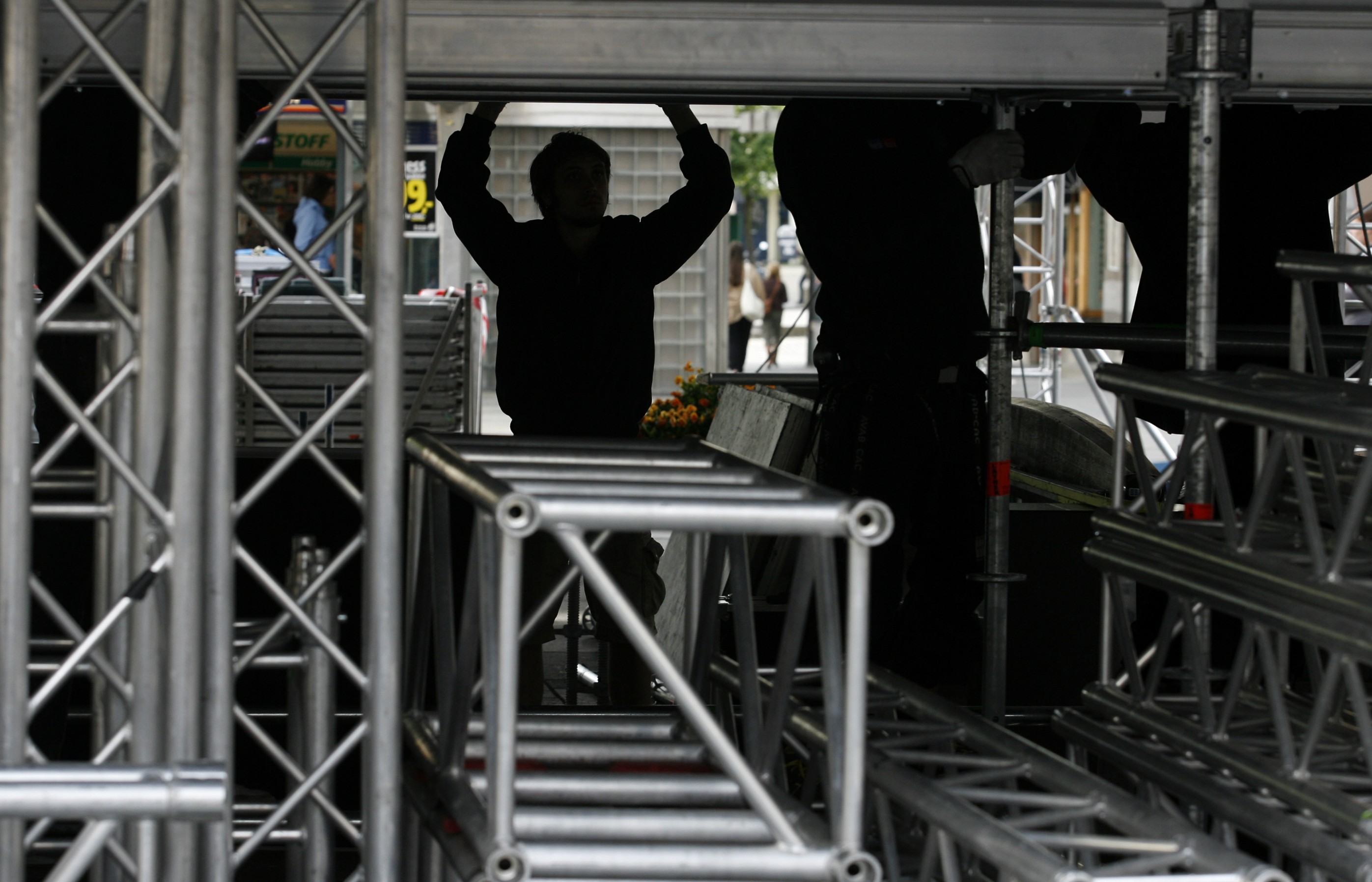

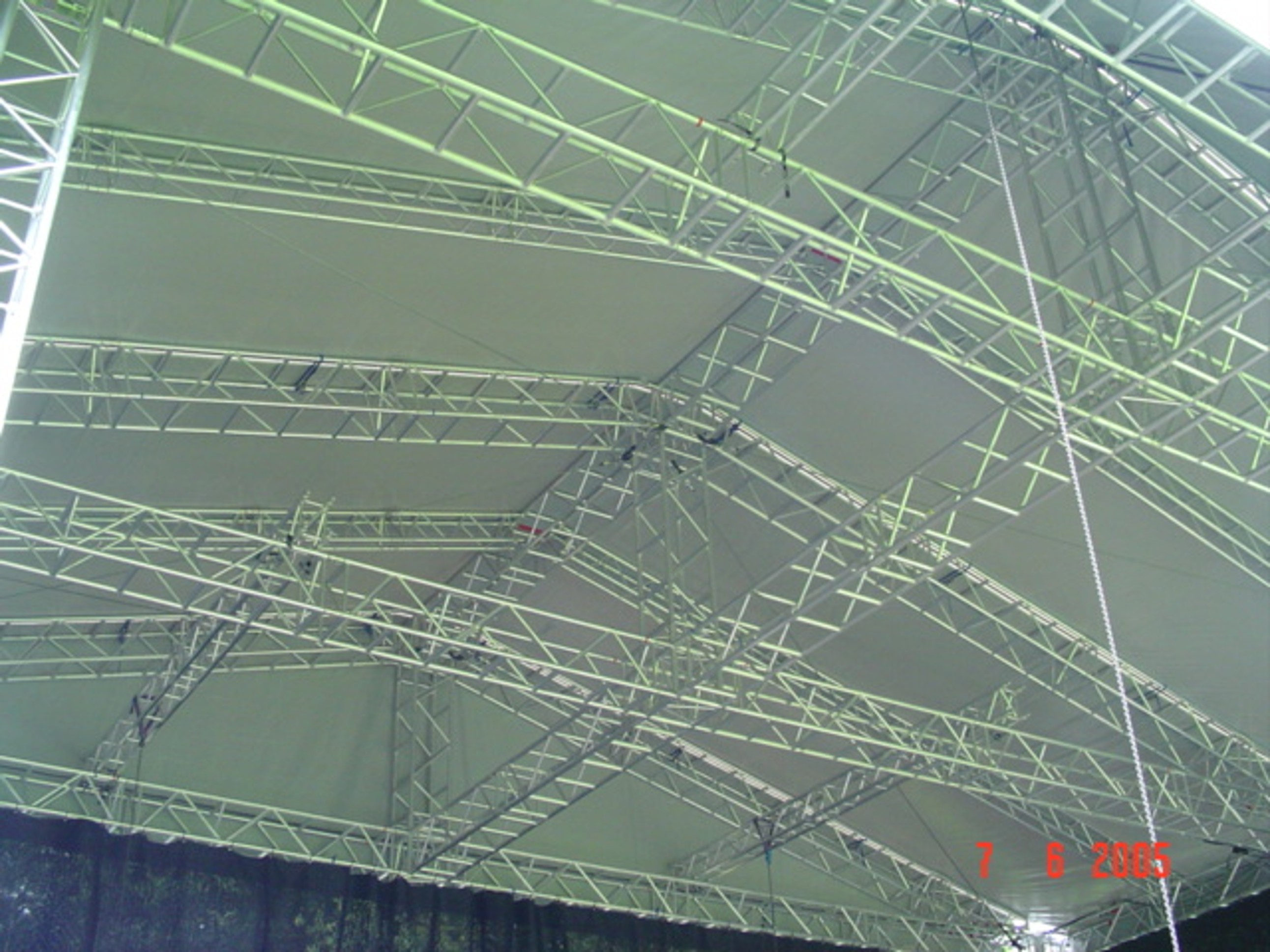

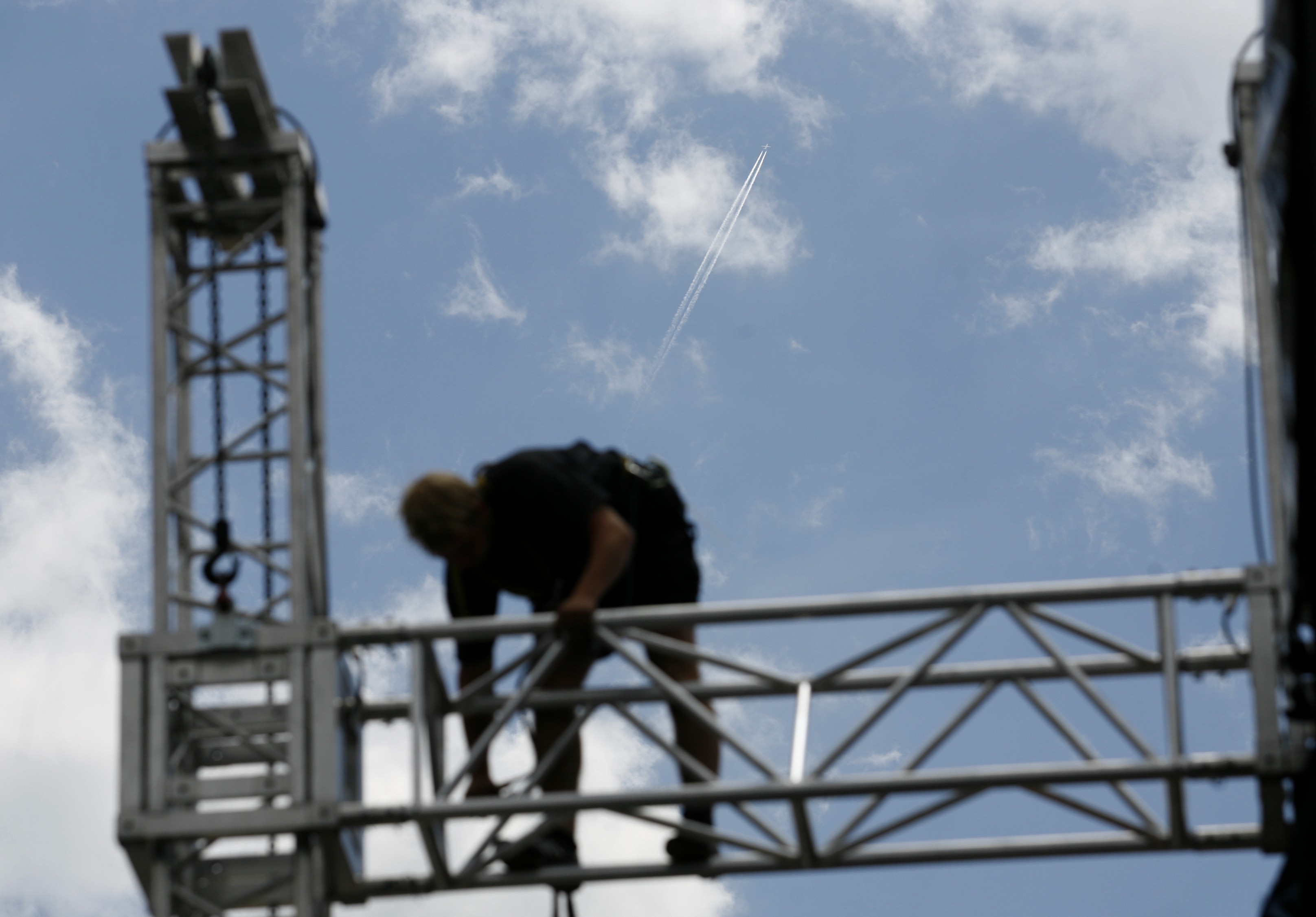

High-capacity truss series for outdoor stages, concert stages or podiums featuring pin holes at 90 degree angles to the ground for convenient access on flat surfaces.
Select format:

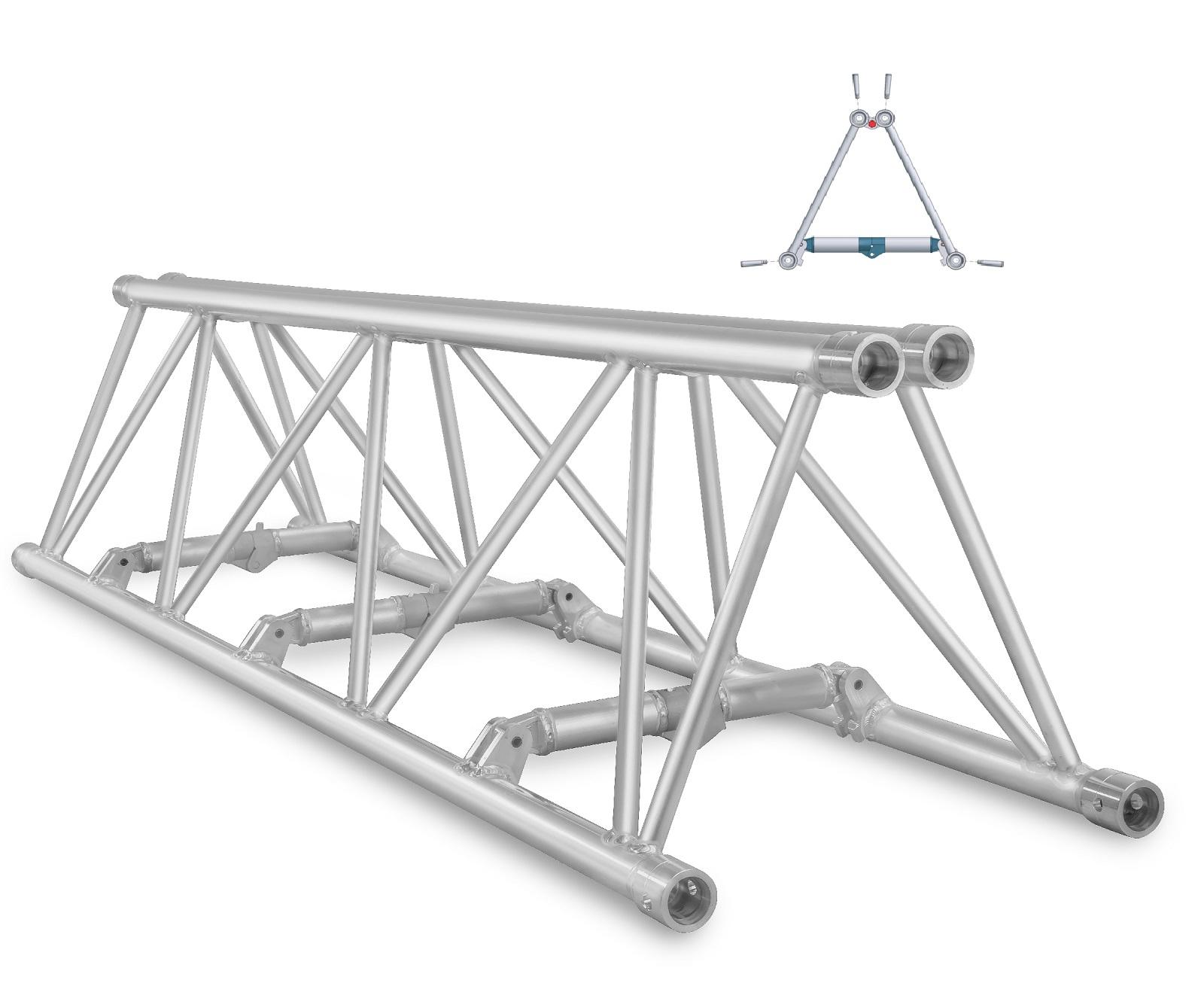

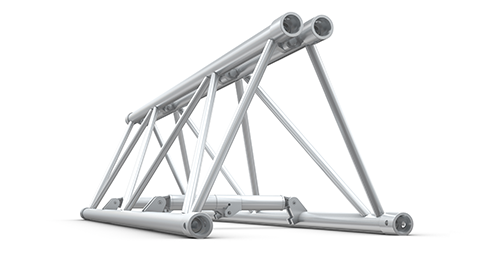

FoldQuatro
Code
FTP
Main Tube
50x4mm
Braces
25x3mm
Available Length
0,5 - 4m
Max. SWL
3520 kg
Size
579 x 529 mm
Span
24 m

Download PDF

Basic info

Description

M520 is a high-capacity truss system which adapts to its users' needs. All events which require an outdoor stage, concert stage or podium will be well-served by the M520. Pin holes are located at a 90 degree angle to the ground for convenient access when truss is lying on a flat surface.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • High-capacity M520 Series truss range

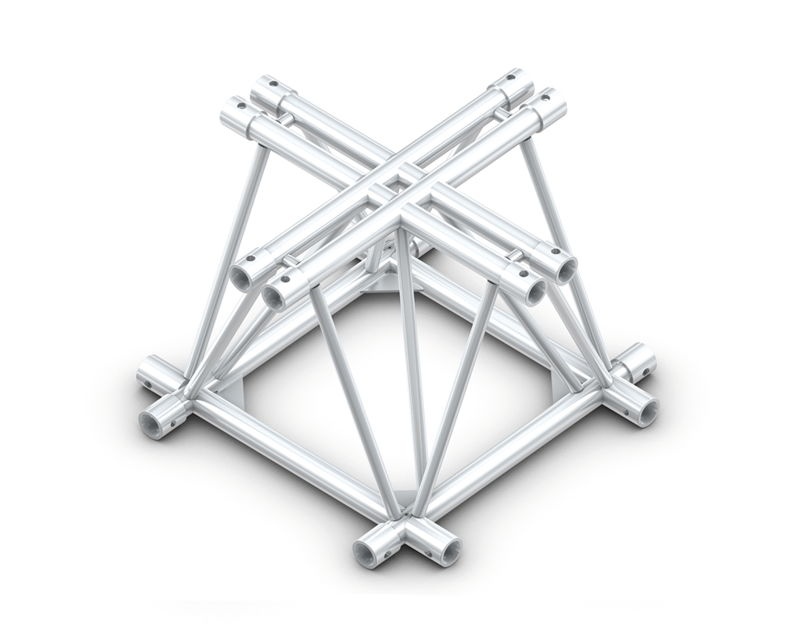

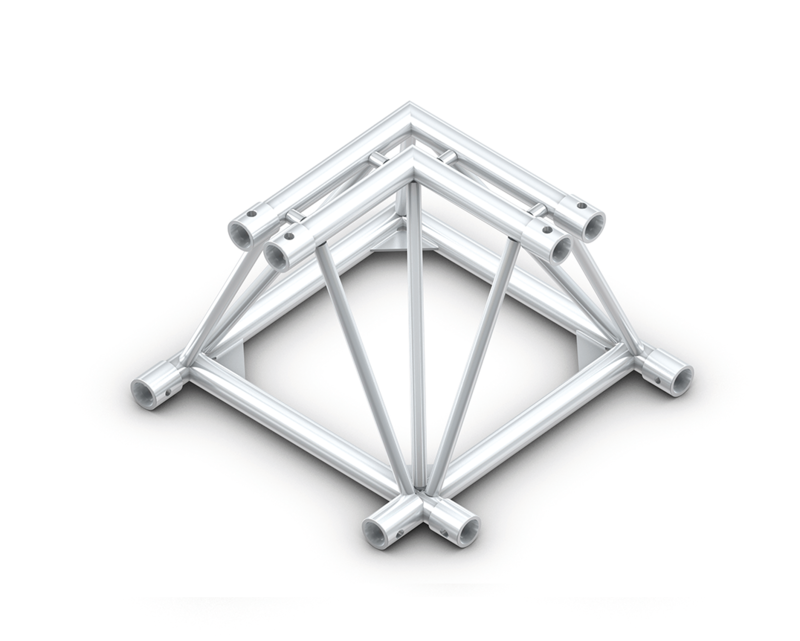

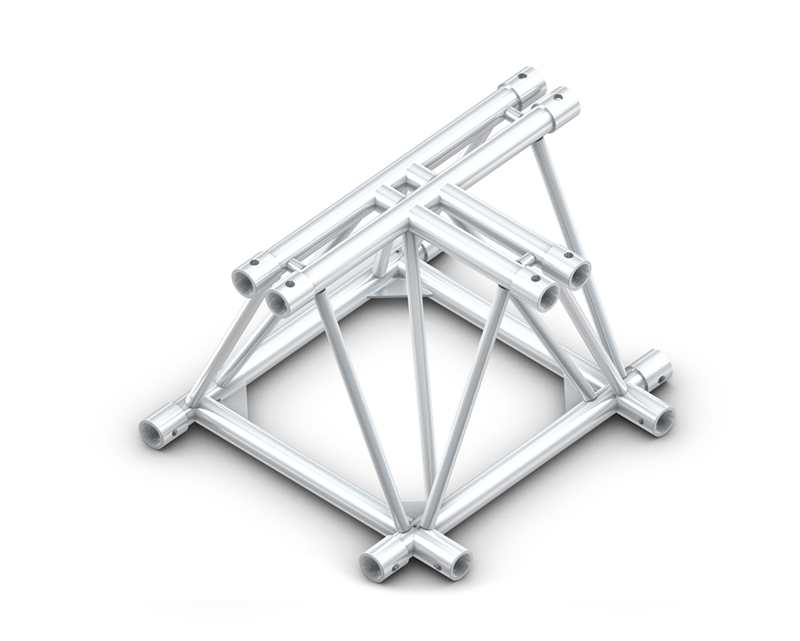

  • Connection kit supplied with every truss length & junction

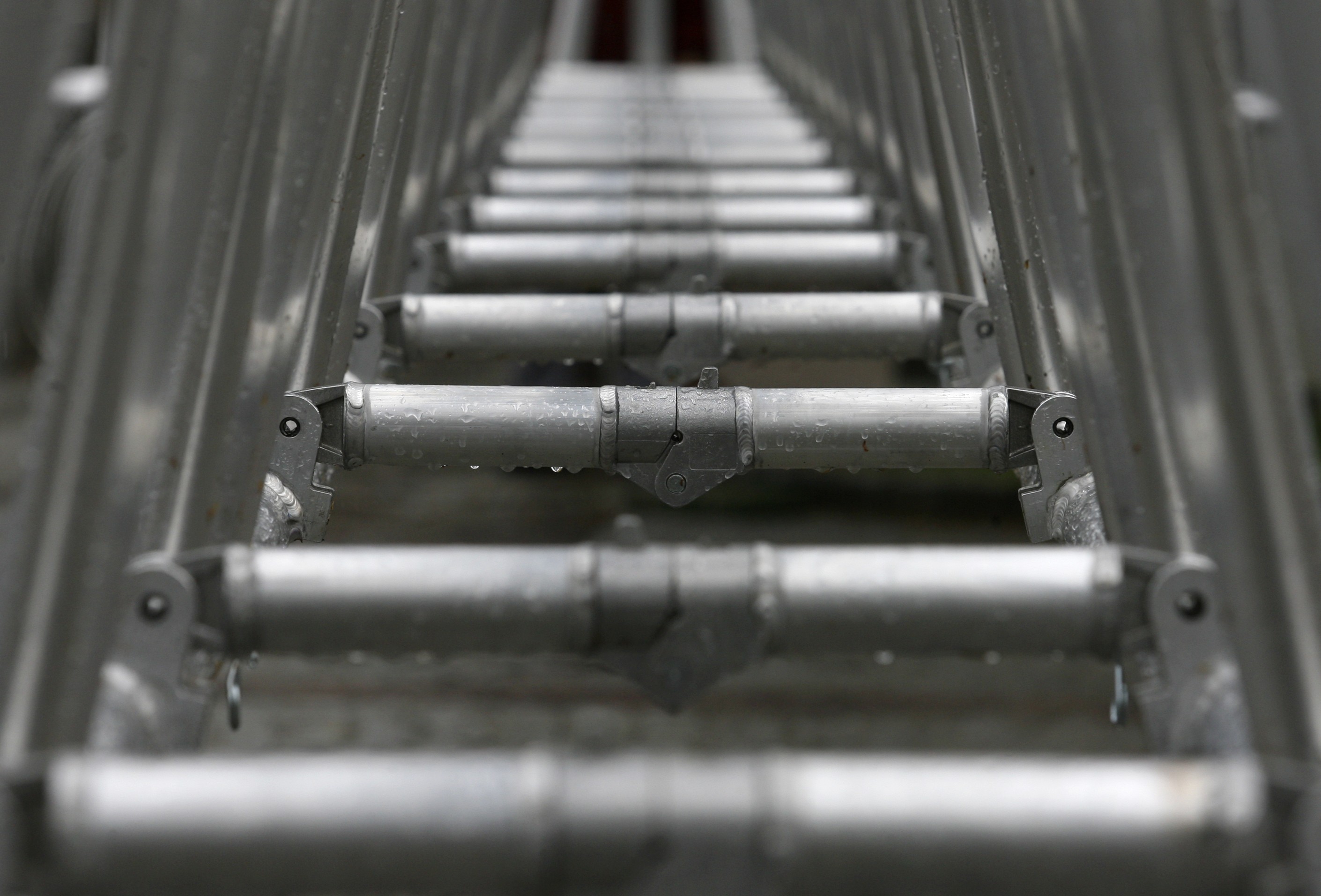

  • Square or compact folding formats available
  • Cell clamp 200 / 400 / 500 / 600 series compatible

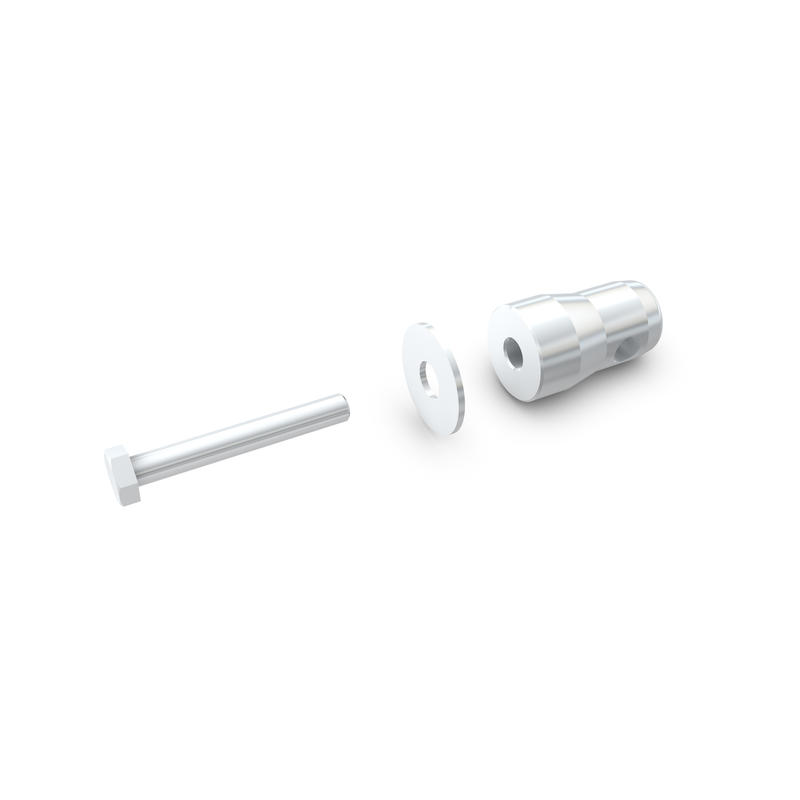

  • Super-size conical connection for maximum rigidity
  • Powder coat colour finish available on request
  • User-friendly tapered pin holes with 90 degree orientation to ground when laid flat for ease of assembly
  • Great free-span & loading characteristics (up to 24m / 78.74 ft)

Tables

M520 - Standard lengths and weights available
  1 m 1.2 m 1.5 m 1.6 m 2 m 2.4 m 2.5 m 3 m 3.5 m 4 m
Fold - 15.4 kg - 20.9 kg - 29.1 kg - - - -
Quatro 17 kg - 22.9 kg - 27.7 kg - 33.54 kg 38.3 kg 44.2 kg 50 kg
