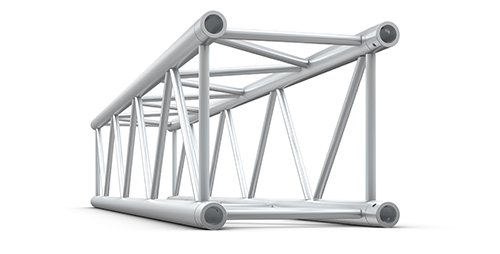

M390 - Medium duty truss with Regular & Heavy-Duty options

Larger format, regular and heavy-duty, truss series with remarkable weight loading and span capabilities for concert stages, larger exhibit displays and other types of indoor / outdoor stages.
Select format:
QuatroTrioDuo
Select load:
RegularHeavy Duty
Code
QTK, QTKF
Main Tube
50 x 2 mm
Braces
20 x 2 mm
Available Length
0,5 - 5 m
Max. SWL
2444 kg
Size
390 x 390 mm
Span
18 m

Download PDF

Basic info

Description

M390 is a larger format product line available in both a heavy duty "L" Range and regular duty "K" Range. It provides remarkable weight loading capabilities while fitting the needs of more substantial spans and booth designs such as concert stages, larger exhibit displays or any other types of indoor or outdoor stages. The M390 provides optimal truss support in every situation.
Call or e-mail us today for more information or to request a quote.

Key benefits

  • Certified 50mm tube M390 Series truss range
  • Custom lengths, junctions & curves available
  • Interior & exterior applications
  • Connection kit supplied with every truss length & junction

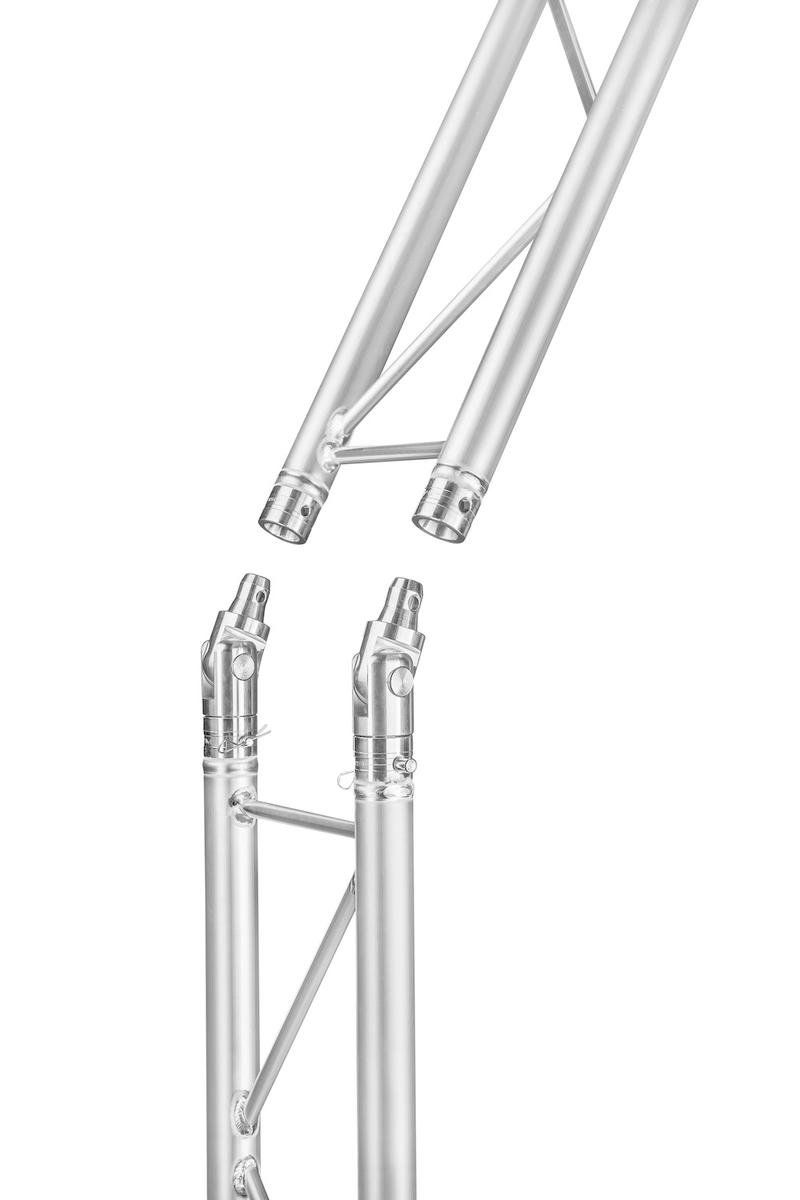

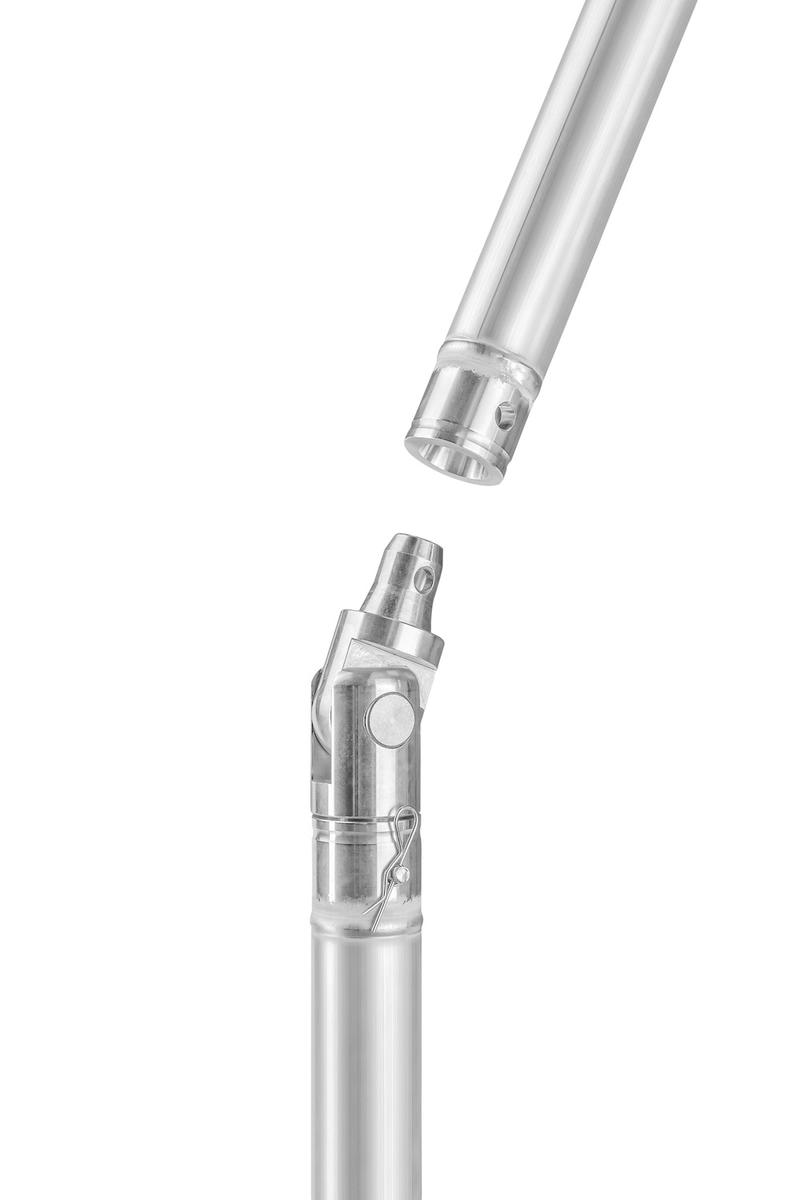

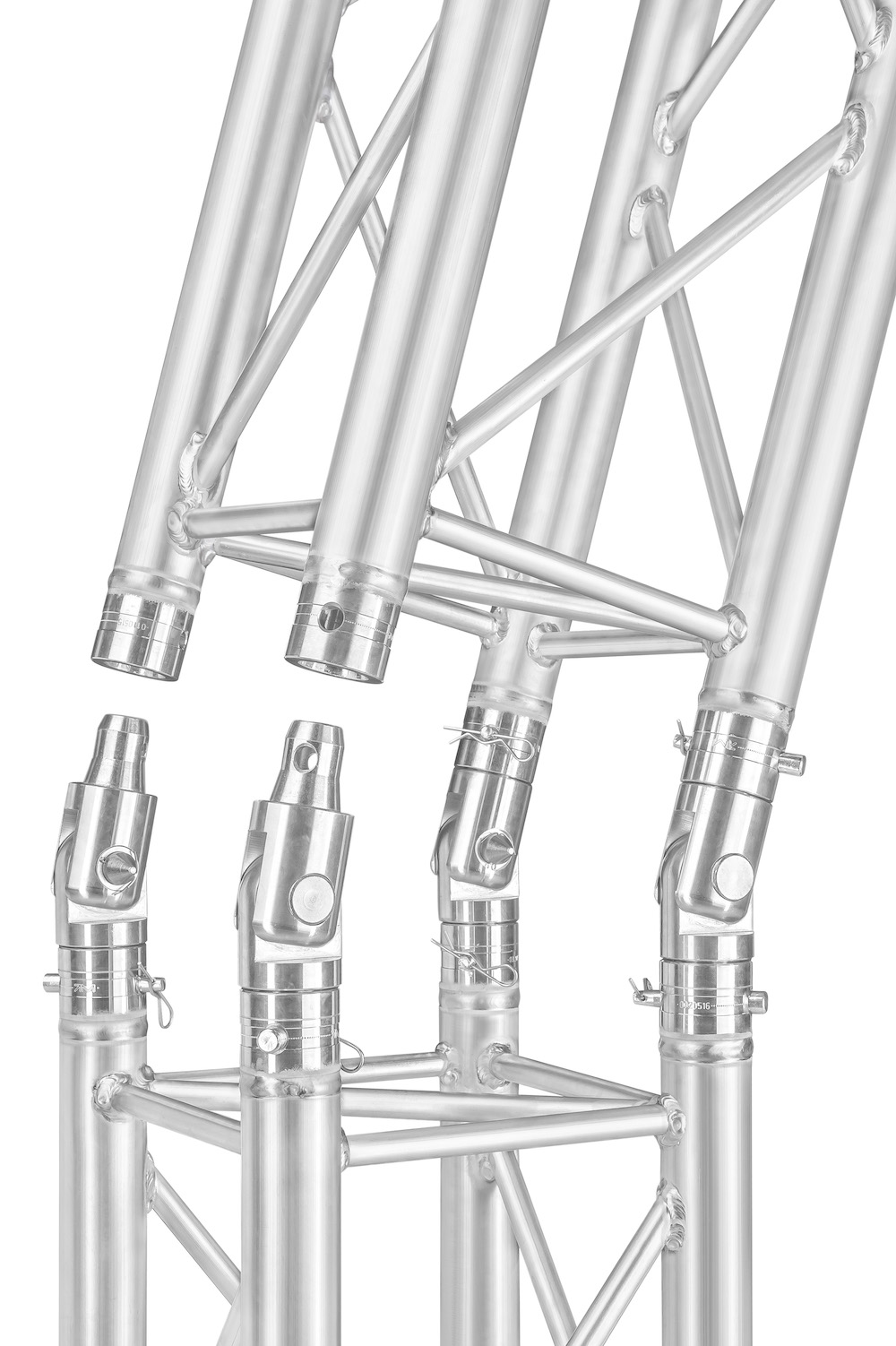

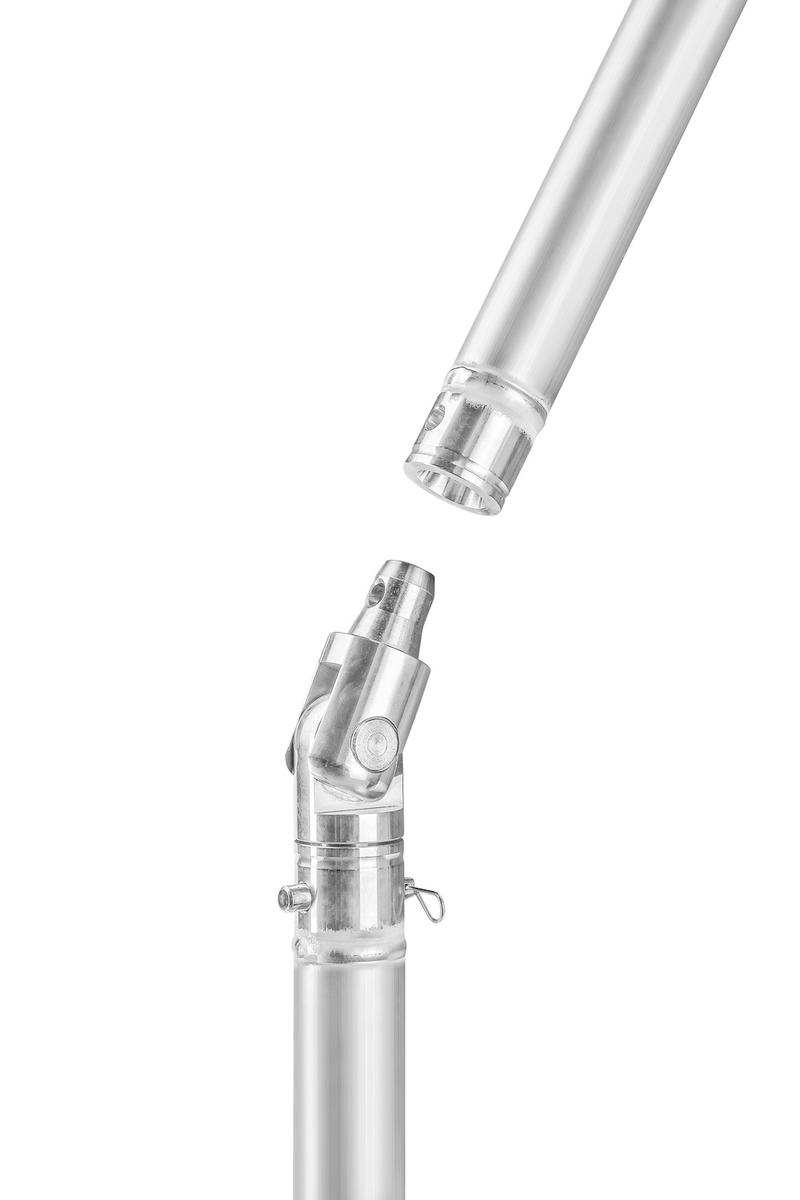

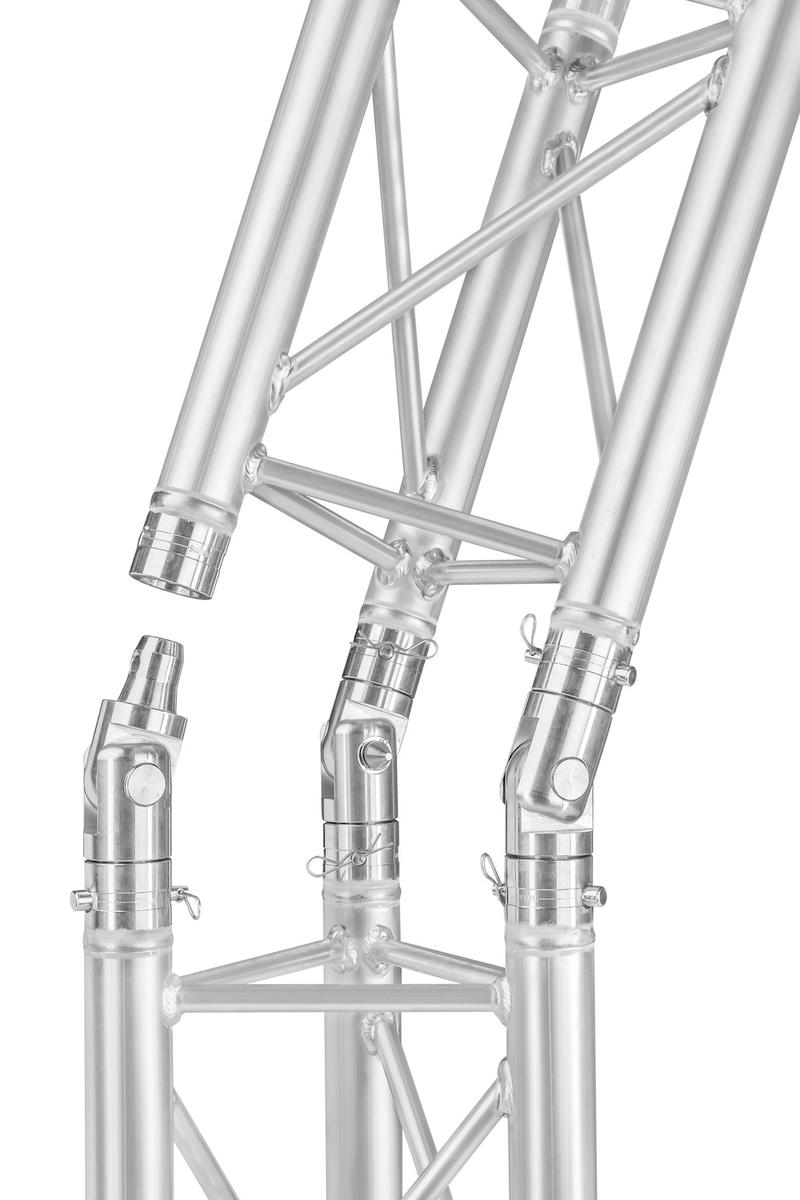

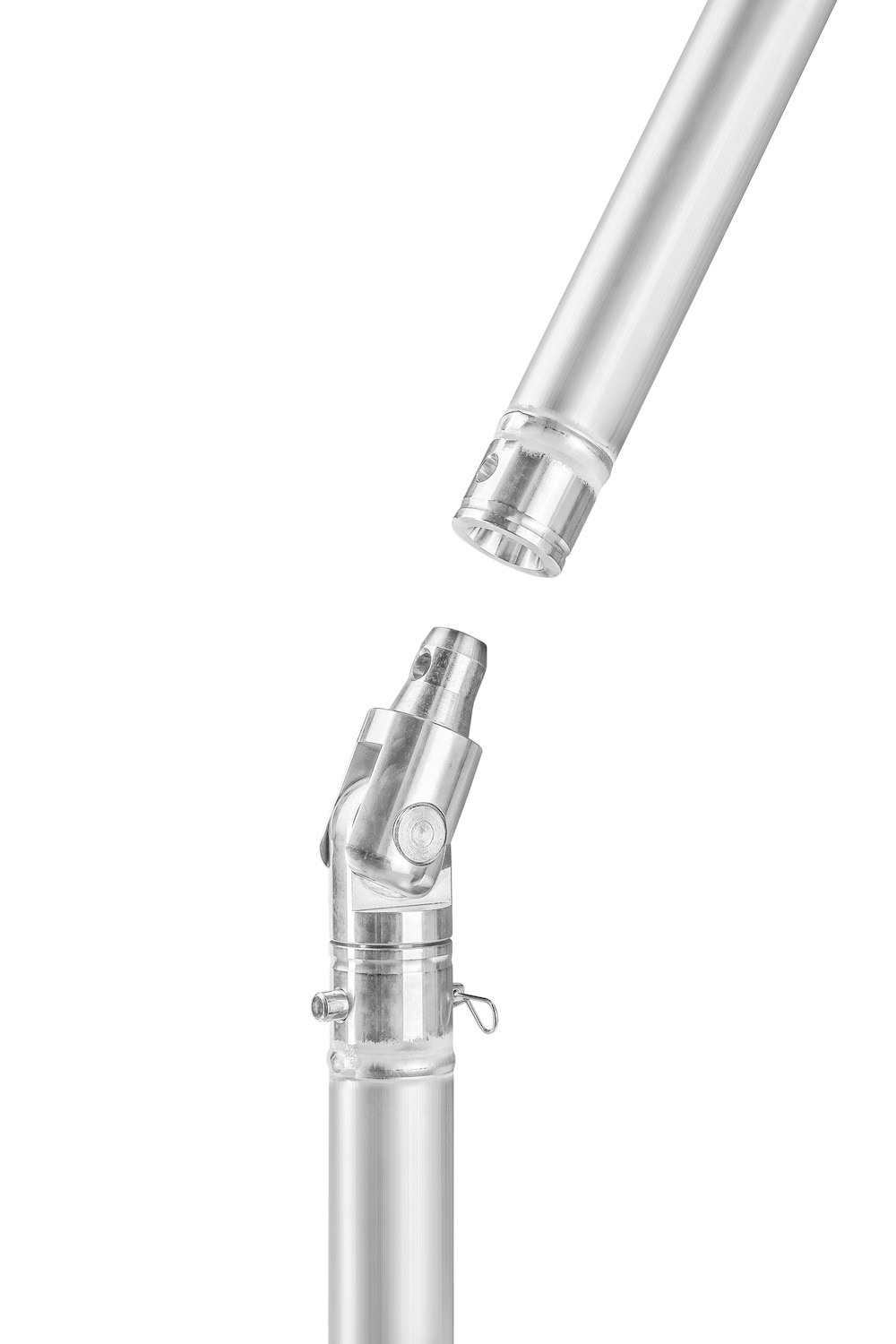

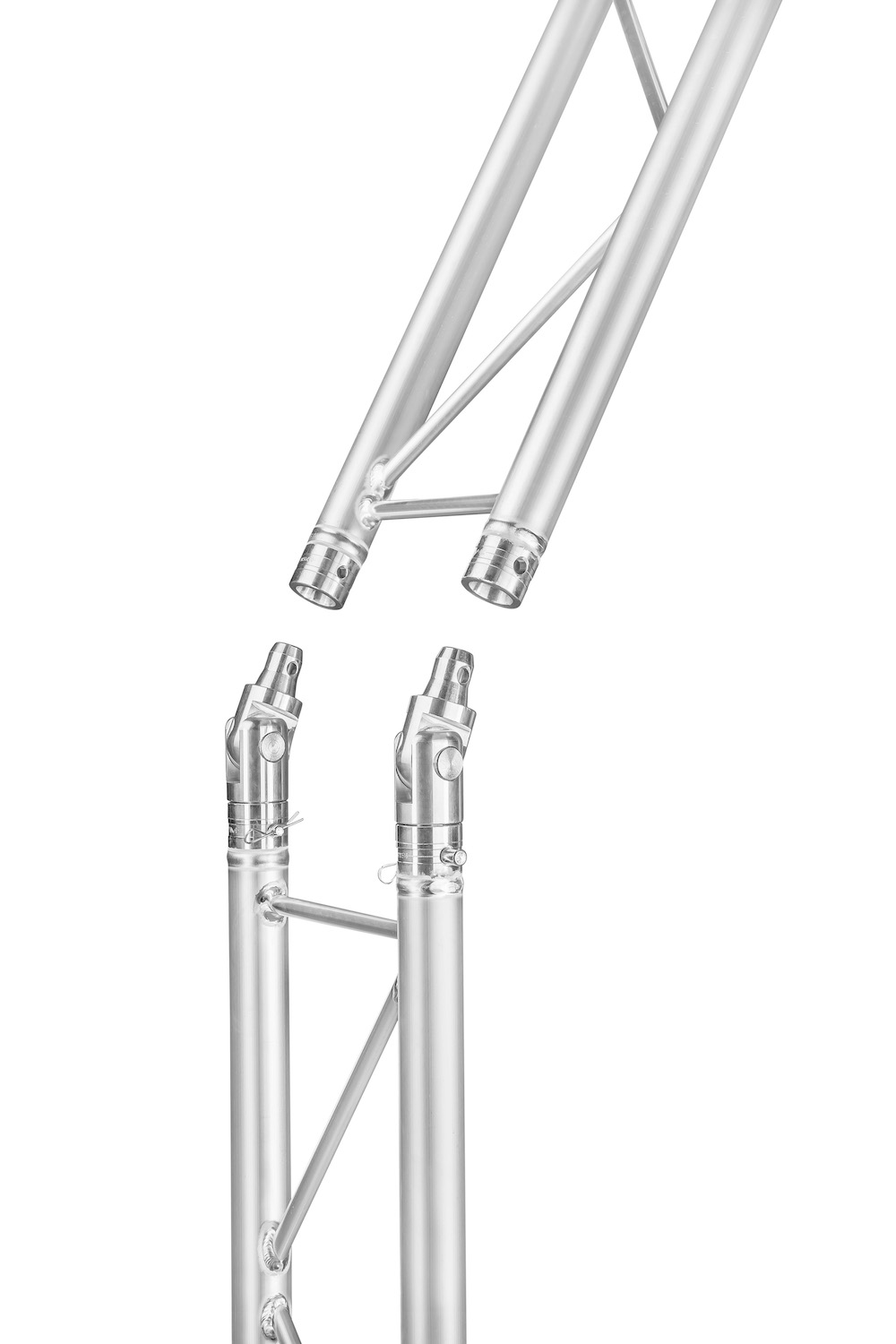

  • Fast connection for quick, simple and secure assembly

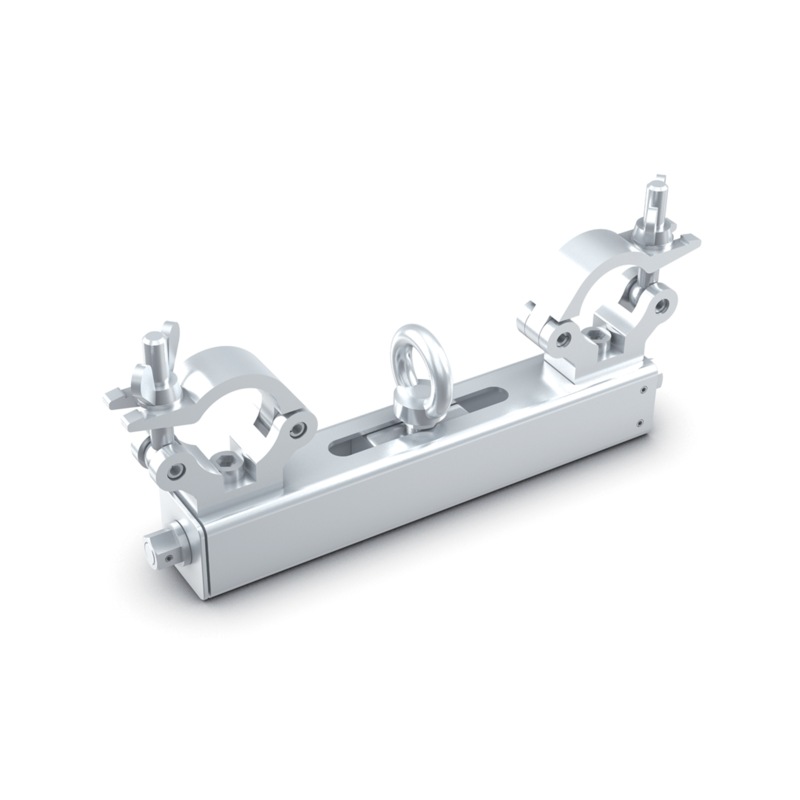

  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Great free-span & loading characteristics (upto 20m / 65.61 ft)
  • Powder coat colour finish available on request

Tables

M390 Regular - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m 5 m
Duo 1.75 kg 3.45 kg 4 kg 6.9 kg 8.65 kg 10.35 kg 13.8 kg 17.25 kg
Trio 2.5 kg 4.95 kg 5.43 kg 9.9 kg 12.4 kg 14.85 kg 19.8 kg 24.75 kg
Quatro 3.925 kg 6.5 kg 9.75 kg 13 kg 16.25 kg 19.5 kg 26 kg 32.5 kg
M390 Heavy Duty - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m 5 m
Duo 1.90 kg 3.8 kg 5.7 kg 7.6 kg 9.5 kg 11.4 kg 15.2 kg 19 kg
Trio 2.9 kg 5.75 kg 6.85 kg 11.5 kg 14.4 kg 17.25 kg 23 kg 28.75 kg
Quatro 3.55 kg 7.10 kg 8 kg 14.2 kg 17.75 kg 21.3 kg 28.4 kg 35.5 kg
