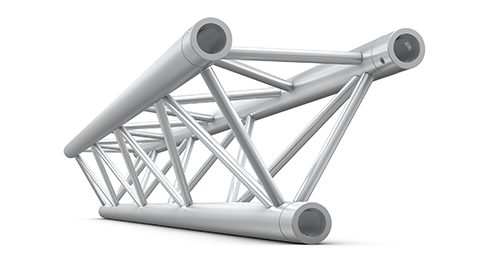

M290 - Mid range system

Certified 50mm tube modular truss series with great free-span & loading characteristics. Compatible with 200/400/500/600 series cell clamps and Xtruss accessories
Available colors:
Code
STV
Main Tube
48 x 3 mm
Braces
STV 16 x 2 mm,
STVF 16 x 2 mm,
STVU: 20 x 2 mm
Available Length
0,5 - 5 m
Size
288 x 255 mm
Span
20 m
M290 - Mid range system
M290 - Mid range system

Detailed information

Description

The M290 system is our mid-sized stage truss line that can be used for both small and large applications. The M290 aluminum truss comes in a "B" and "V" range, which are designed for both large and small applications. The "V" Range is for heavy duty use, while the "B" Range is for medium duty use. Both trussing systems offer excellent spanning and weight loading capabilities while providing a decorative touch!
Call or e-mail us today for more information or to request a quote.

Key benefits

  • Certified 48mm tube heavy-duty M290 Series truss range
  • Great free-span & loading characteristics (upto 20m / 65.61 ft)
  • Keystone system used within PA & Rigging Towers & Roofs
  • Connection kit supplied with every truss length & junction
  • Durable construction with diagonal anti-twist end brace
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Fast connection for quick, simple and secure assembly
  • Xtruss accessories compatible
  • Powder coat colour finish available on request
M290 Regular - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m 5 m
Duo 1.60 kg 2.60 kg 3.60 kg 4.50 kg 5.40 kg 6.60 kg 8.30 kg 10.30 kg
Trio 2.60 kg 4.30 kg 6.00 kg 7.70 kg 9.10 kg 10.80 kg 14.10 kg 18.00 kg
Quatro 3.90 kg 6.00 kg 8.30 kg 10.60 kg 12.90 kg 15.00 kg 19.60 kg 23.50 kg
M290 Heavy Duty - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m 5 m
Duo 1.80 kg 3.10 kg 4.30 kg 5.70 kg 6.90 kg 8.20 kg 10.70 kg 13.30 kg
Trio 2.90 kg 5.00 kg 7.10 kg 9.30 kg 11.40 kg 13.50 kg 18.00 kg 22.00 kg
Quatro 3.90 kg 7.00 kg 9.90 kg 12.50 kg 15.10 kg 18.30 kg 24.00 kg 29.70 kg
