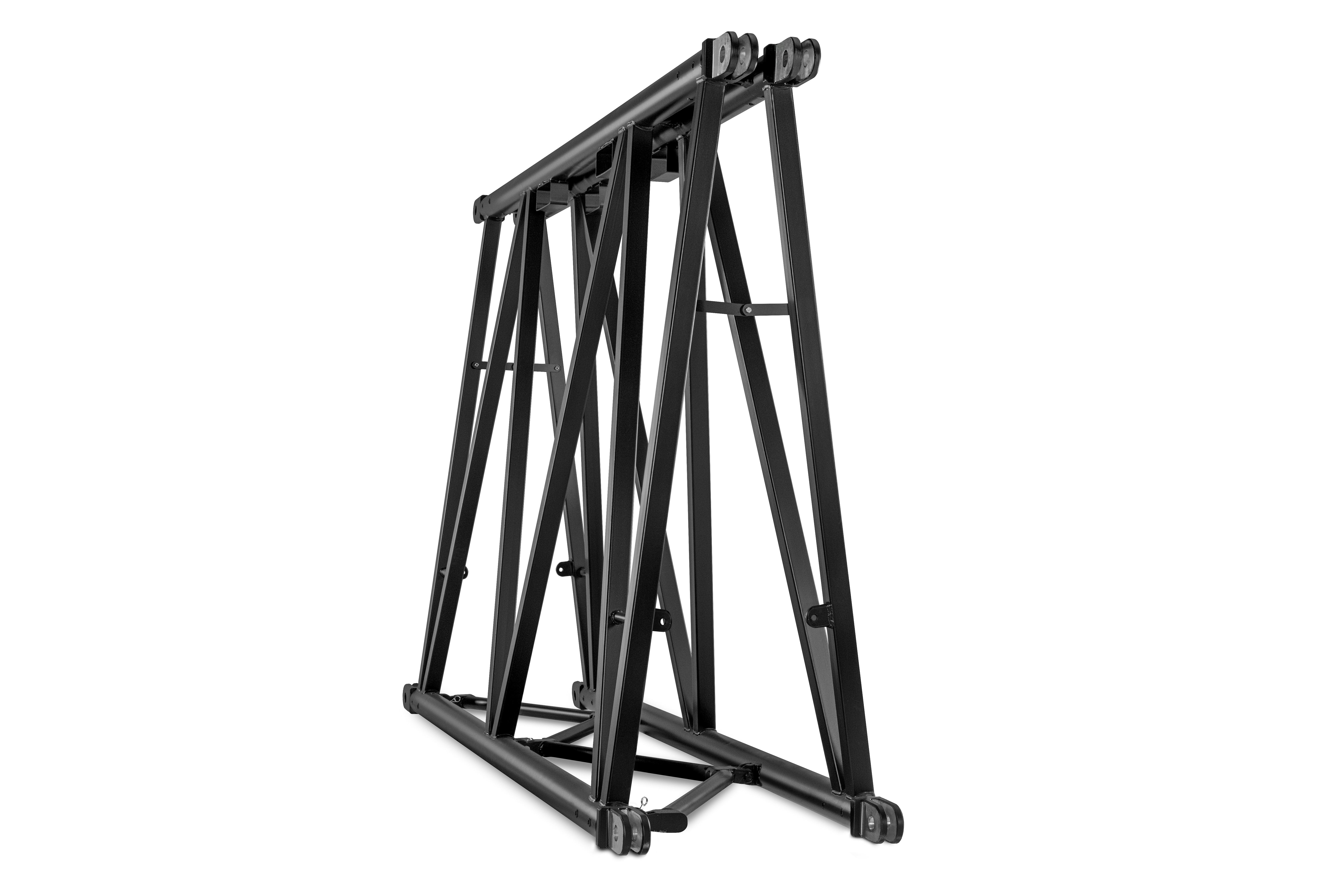

S-M2000 Folding Steel Truss

Foldable steel truss that handles the heaviest loads, while taking up less space

Code
S-FTZ
Width
770 mm
Height
2000 mm
Main Tube
101.6 x 4 mm
Braces
60 x 60 x 4 mm / 48.3 x 3 mm

Download PDF

Basic info

Description

The 2001.76 x 771.6 mm MILOS 2000 Folding ultra-strength steel truss saves you money by requiring less storage and transport space due to the folding design of its lateral diagonals.

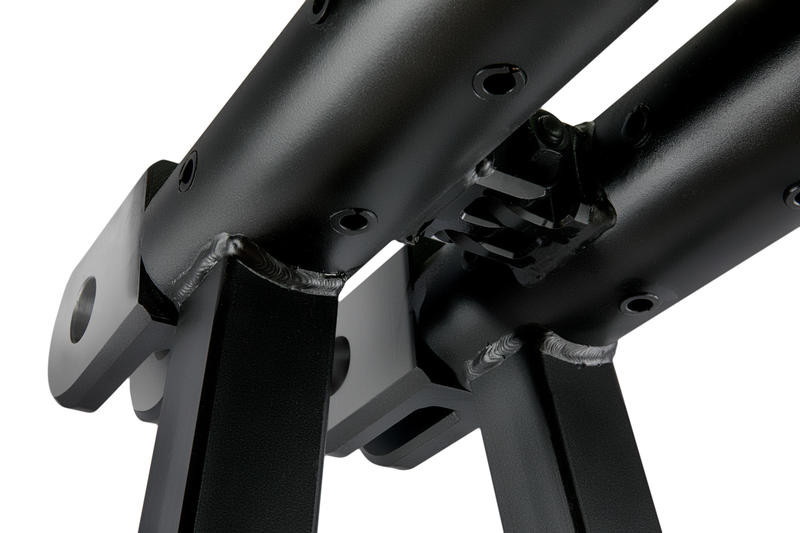

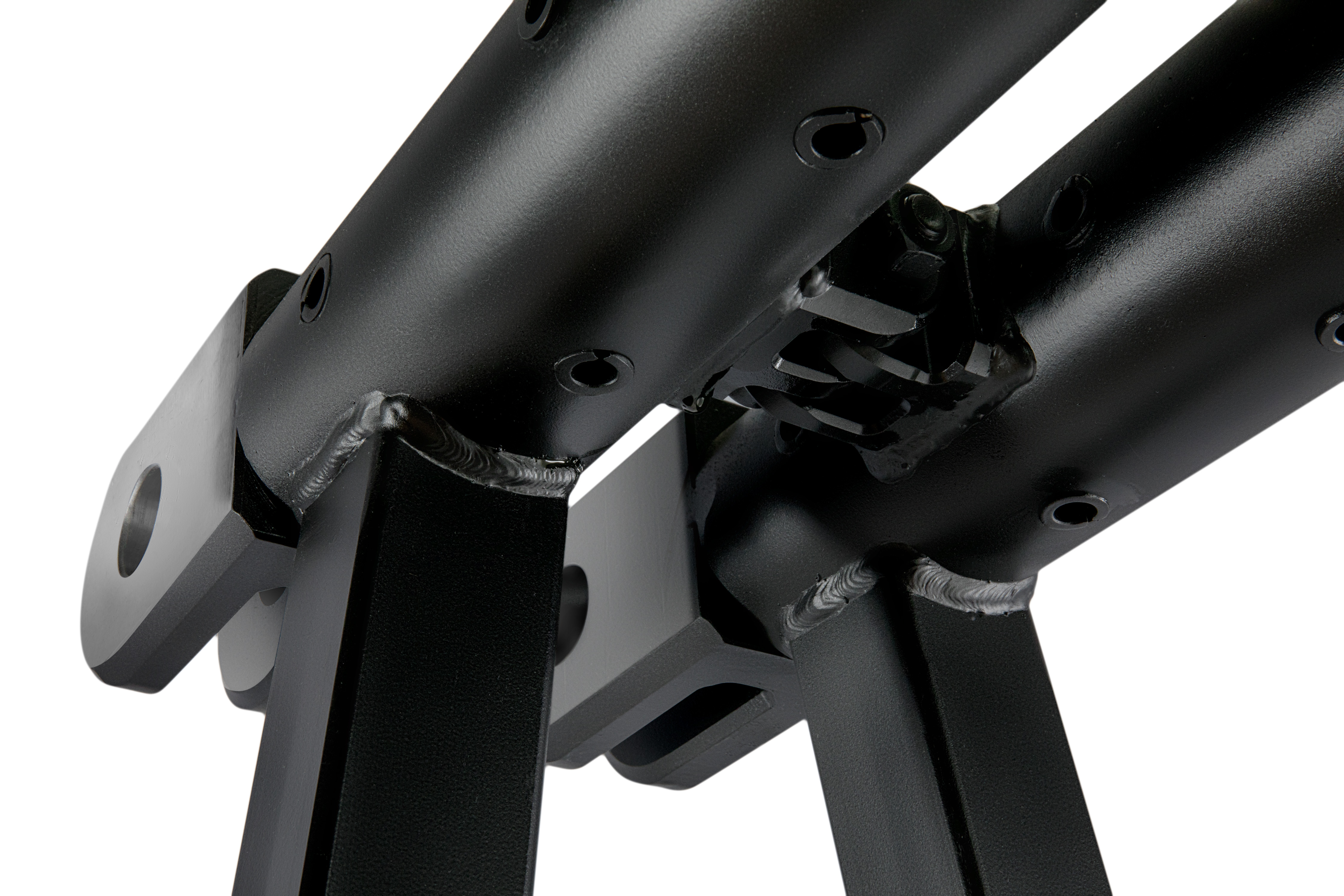

Made from special, ultra-high strength steel alloys, it handles unbelievably high loads on extremely wide spans. This makes it a truly unique product for the event industry. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.

Key benefits

  • Foldable design
  • Unique product for the event industry
  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • Optimised webbing pattern for ease of use when assembling cross trusses

Tables

Loading chart
Span 25 m 30 m 35 m 40 m 45 m 50 m 55 m 60 m
Point load 24932 kg 20240 kg 16805 kg 14156 kg 12031 kg 10272 kg 8780 kg 7488 kg
Deflection 94 mm 137 mm 189 mm 249 mm 320 mm 401 mm 493 mm 598 mm
Two point load 16699 kg 15180 kg 12604 kg 10617 kg 9023 kg 7704 kg 6585 kg 5616 kg
Deflection 107 mm 171 mm 233 mm 306 mm 388 mm 481 mm 584 mm 698 mm
Three point load 11133 kg 10120 kg 8403 kg 7078 kg 6015 kg 5136 kg 4390 kg 3744 kg
Deflection 100 mm 160 mm 219 mm 287 mm 366 mm 455 mm 555 mm 665 mm
Four point load 8349 kg 8203 kg 7002 kg 5898 kg 5013 kg 4280 kg 3658 kg 3120 kg
Deflection 95 mm 165 mm 230 mm 302 mm 384 mm 476 mm 578 mm 692 mm
Distributed load 1336 kg 1094 kg 921 kg 708 kg 535 kg 411 kg 319 kg 250 kg
Deflection 80 mm 139 mm 221 mm 300 mm 381 mm 473 mm 575 mm 688 mm
