Go back to Towers & LED Screens
Detailed information
Basic info
Photo Gallery
Download section
Description

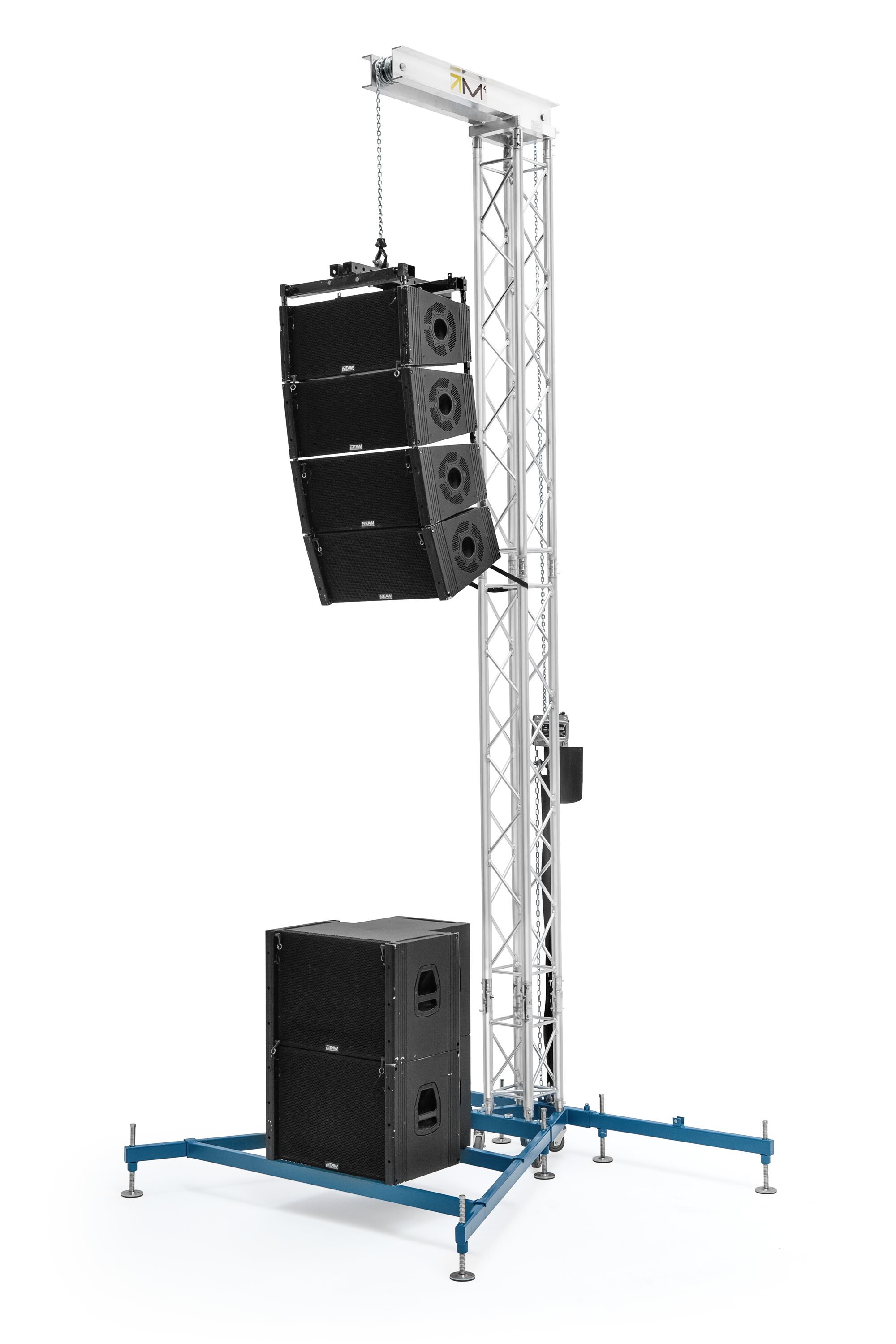

The new MILOS MT-PA5030 PA fly tower was designed for live events that require a compact PA fly tower for small systems that can be used both indoors and outdoors.
Set up is easy. Only a few 290 QTV truss components are needed to erect the tower and only 2 persons are required to accomplish this feat. Due to a height of just under 5 meters, approvals by authorities are not necessary. The design allows for placement of base cabinets or amplifier racks on top of the outriggers.
Key benefits
Footprint at set up is 2.5 x 2 m 8.2' x 6.6' (width x depth)
Max. load 300 kg (660 lbs)
1.5 m2 (16.15 ft2) max. front surface area of the PA
1.0 m2 (10.76 ft2) max. side surface area of the PA
50 kg (110 lbs) required ballast
20m/s (45 mph) in-service wind loading
Out-of-service wind loading as per DIN-EN 13814

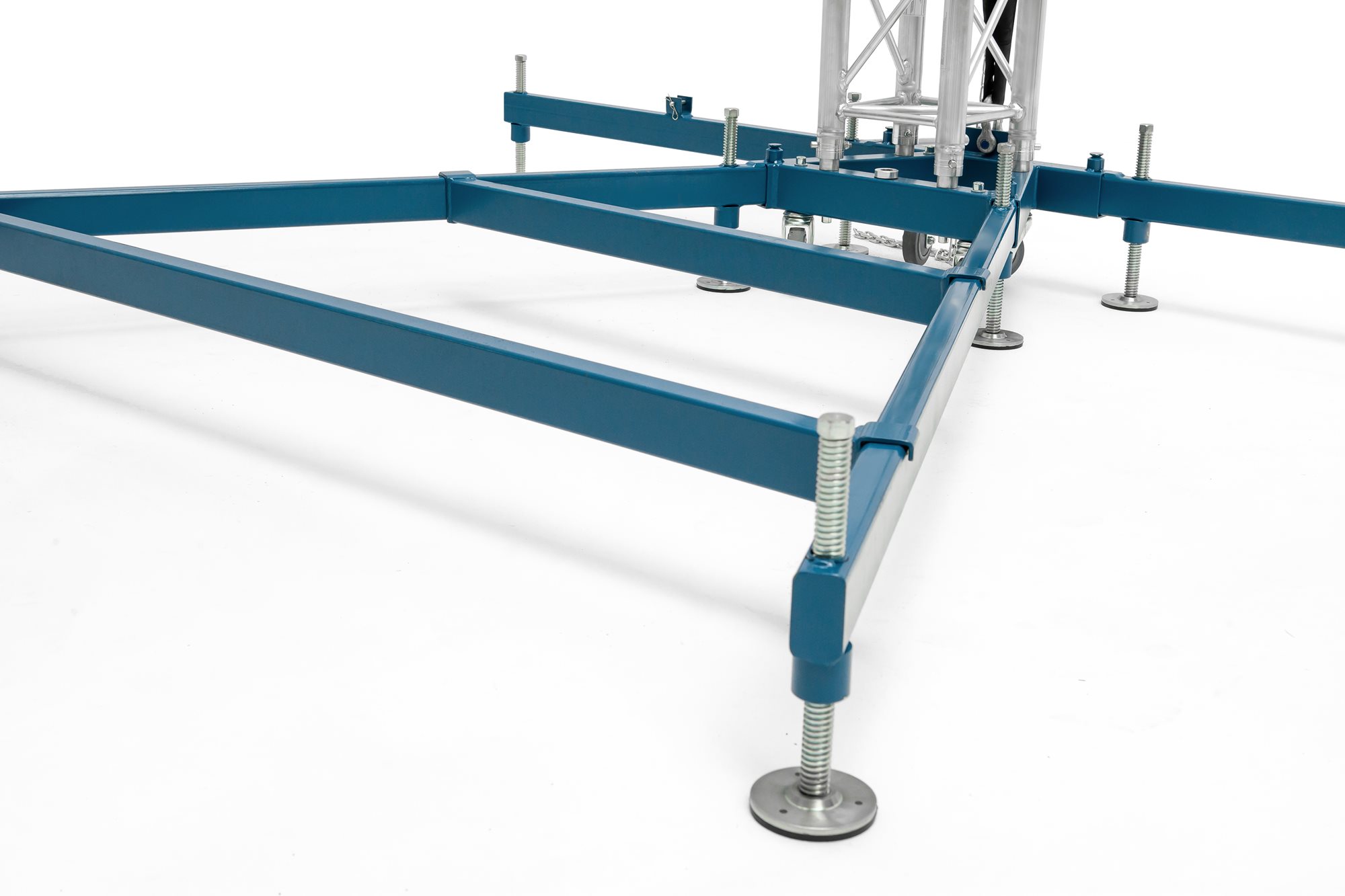

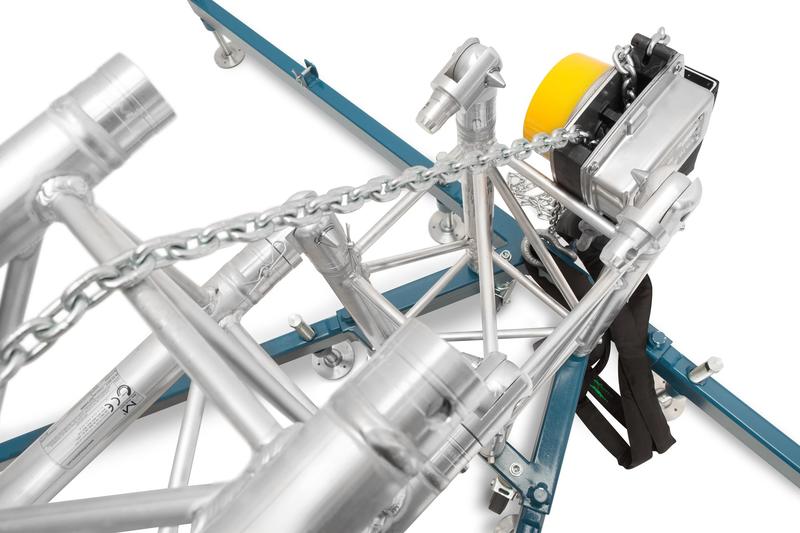

Base frame is V-shaped steel centrepiece with set of 2 bespoke and 2 long MT2 outriggers

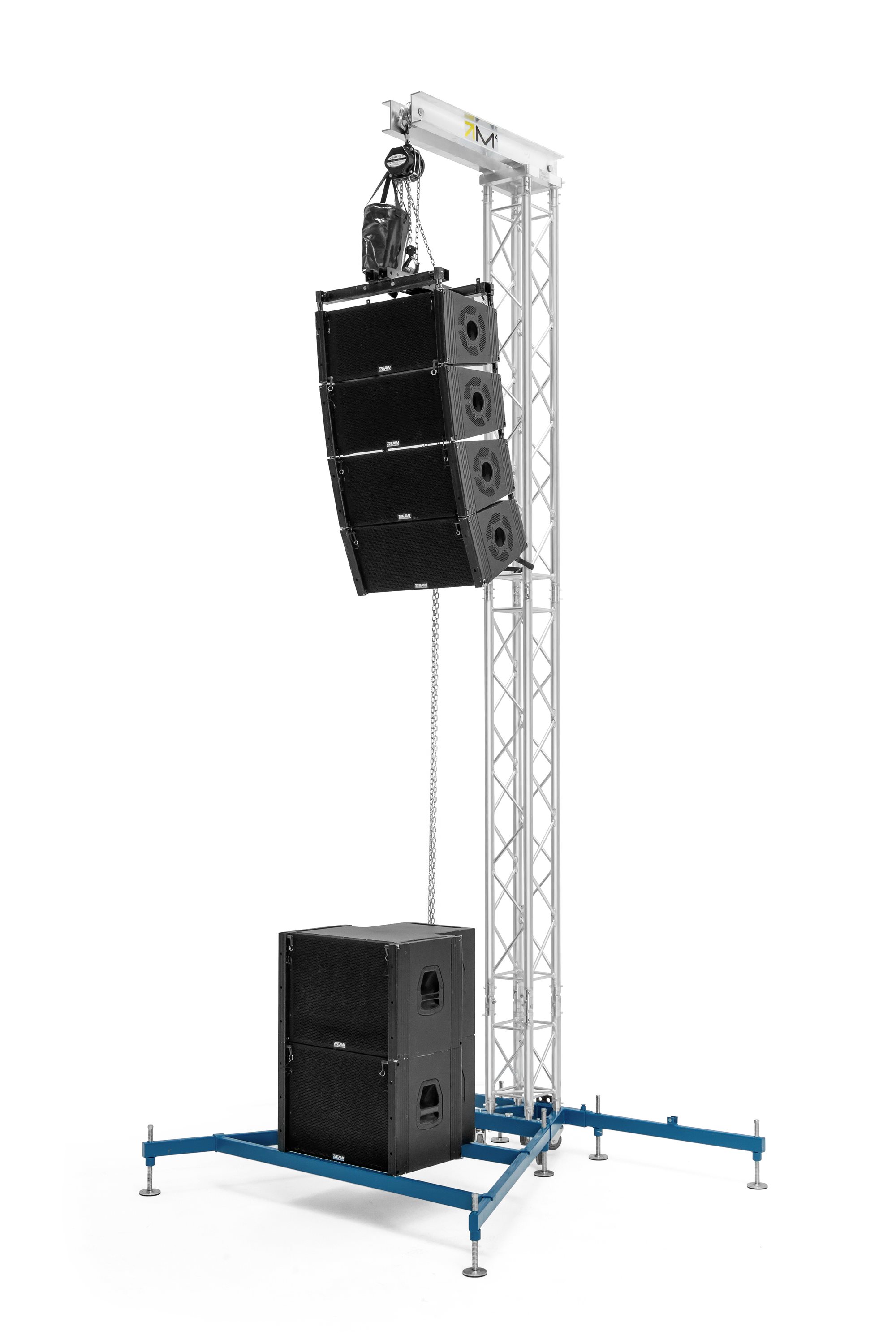

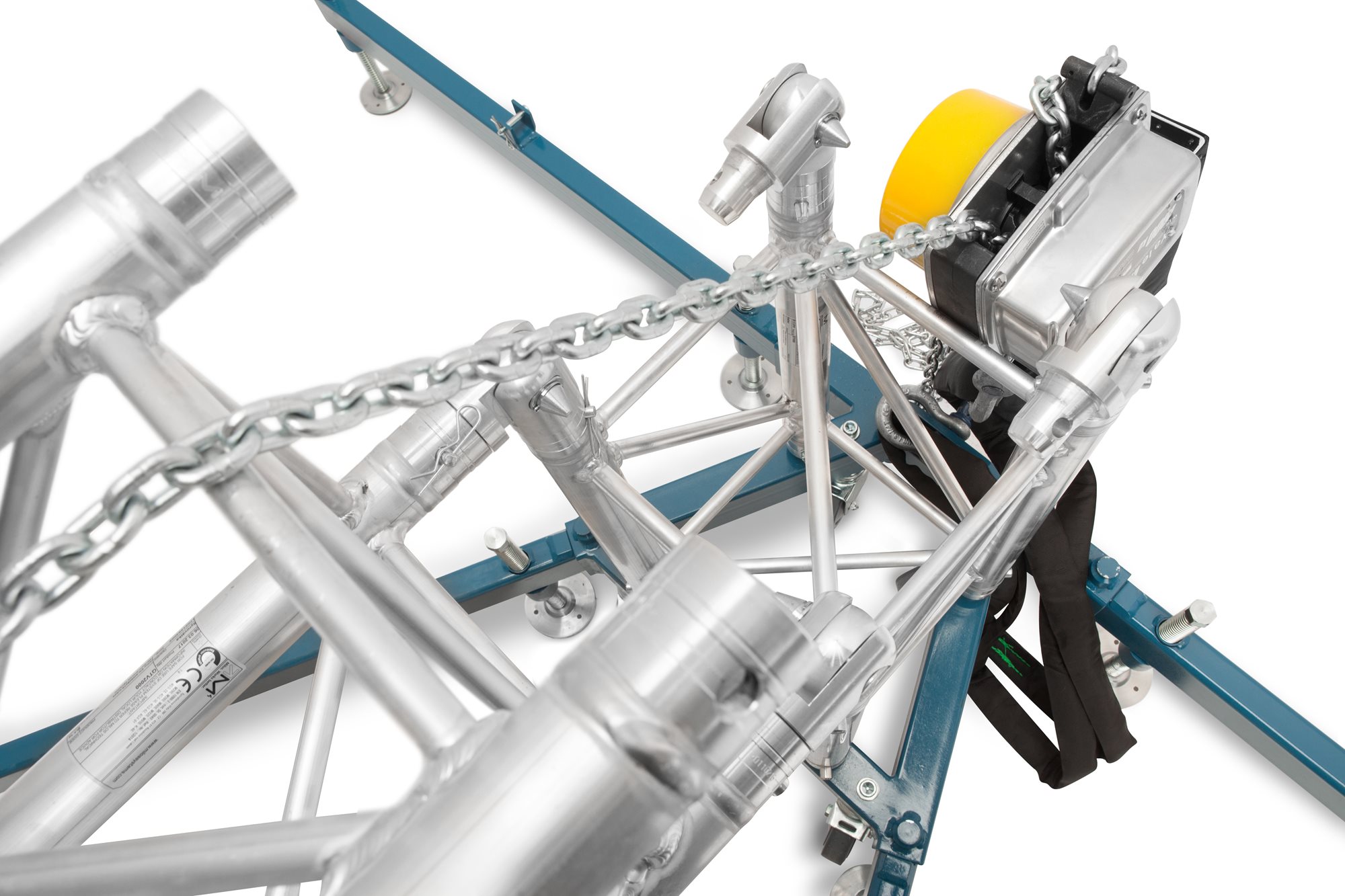

Lifting operations with either electrical or manual chain hoists
EXE hoists recommended

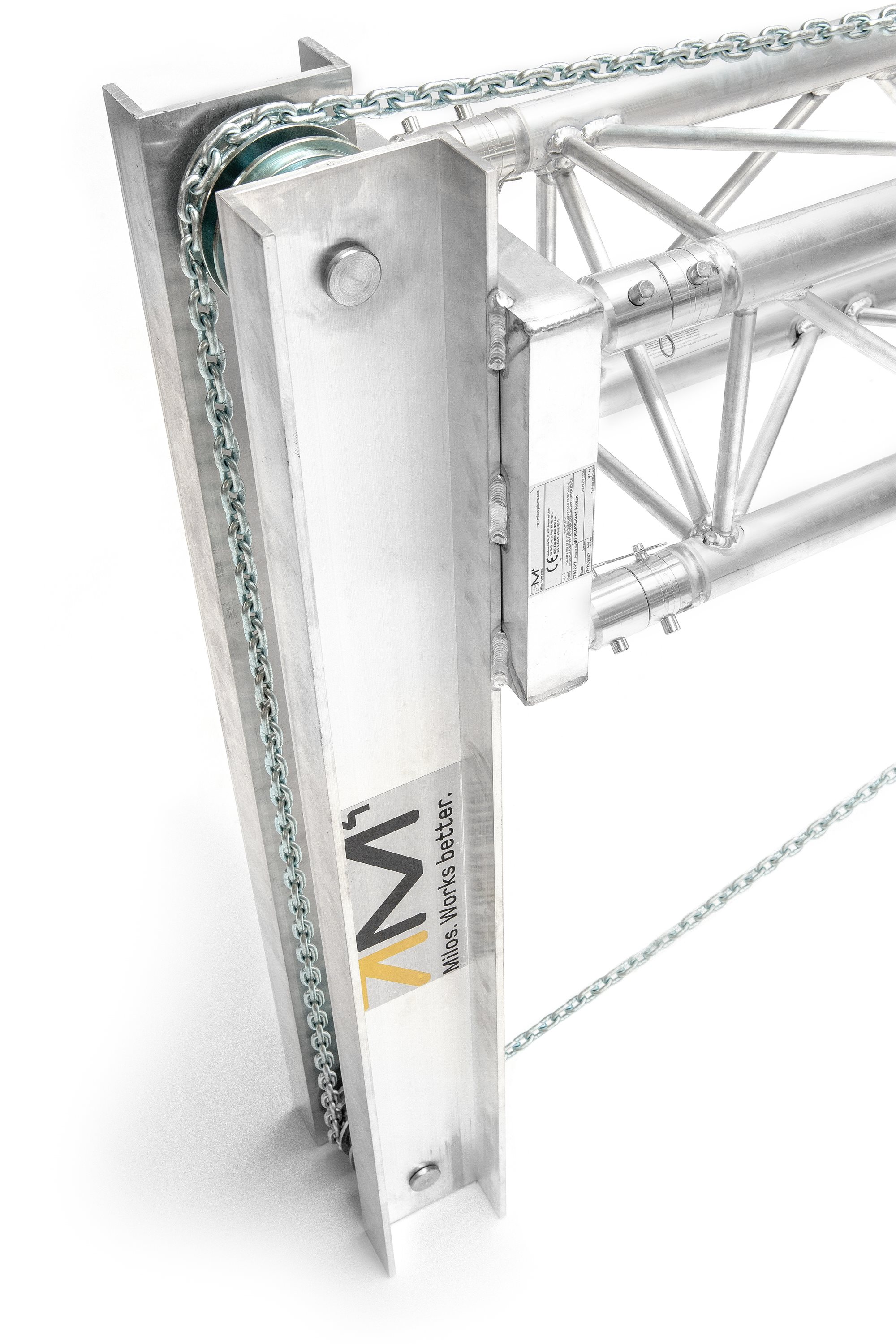

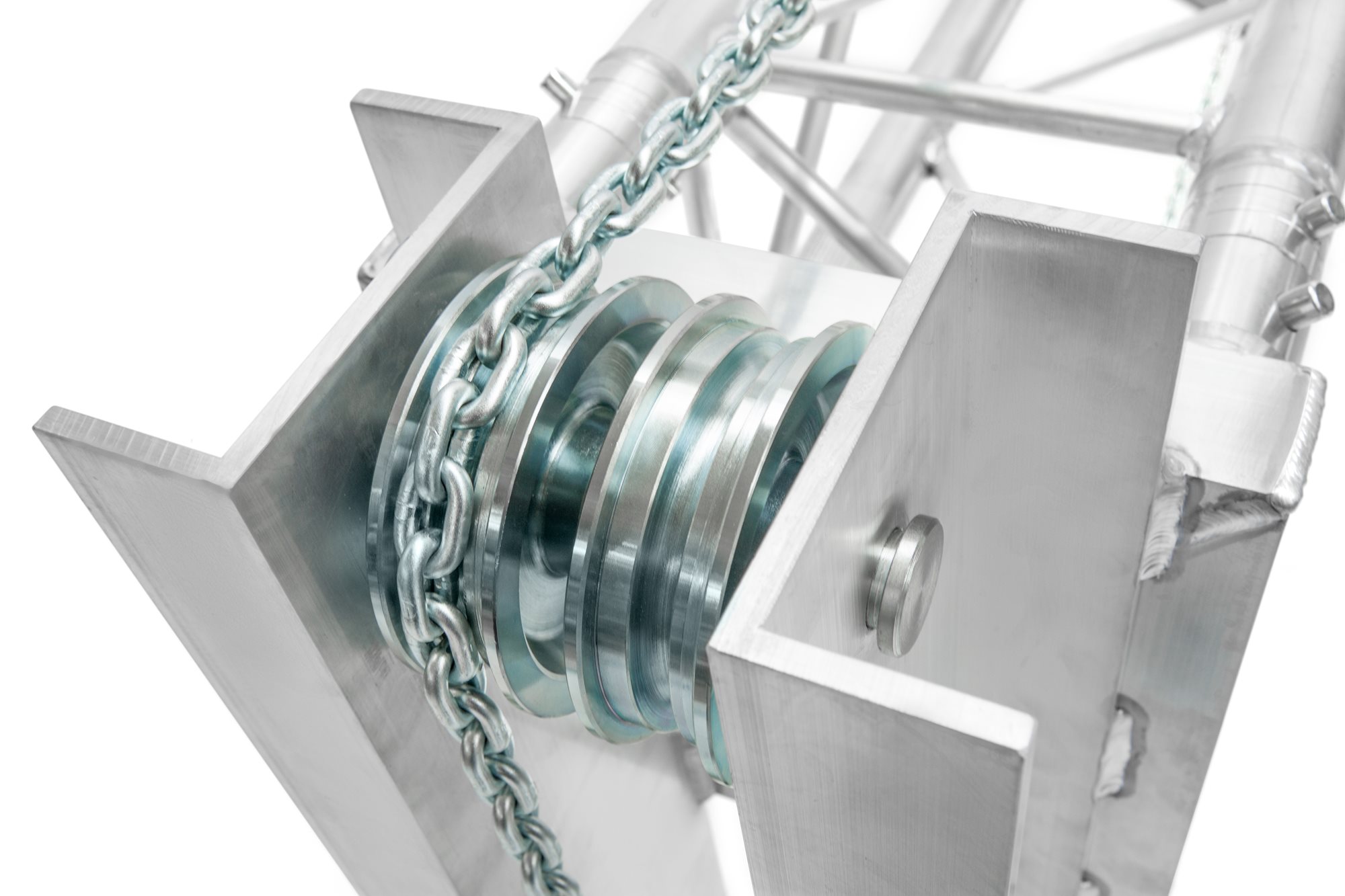

Head block equipped with double pulley system for attachment of safety chain or safety wire parallel to lifting chain.

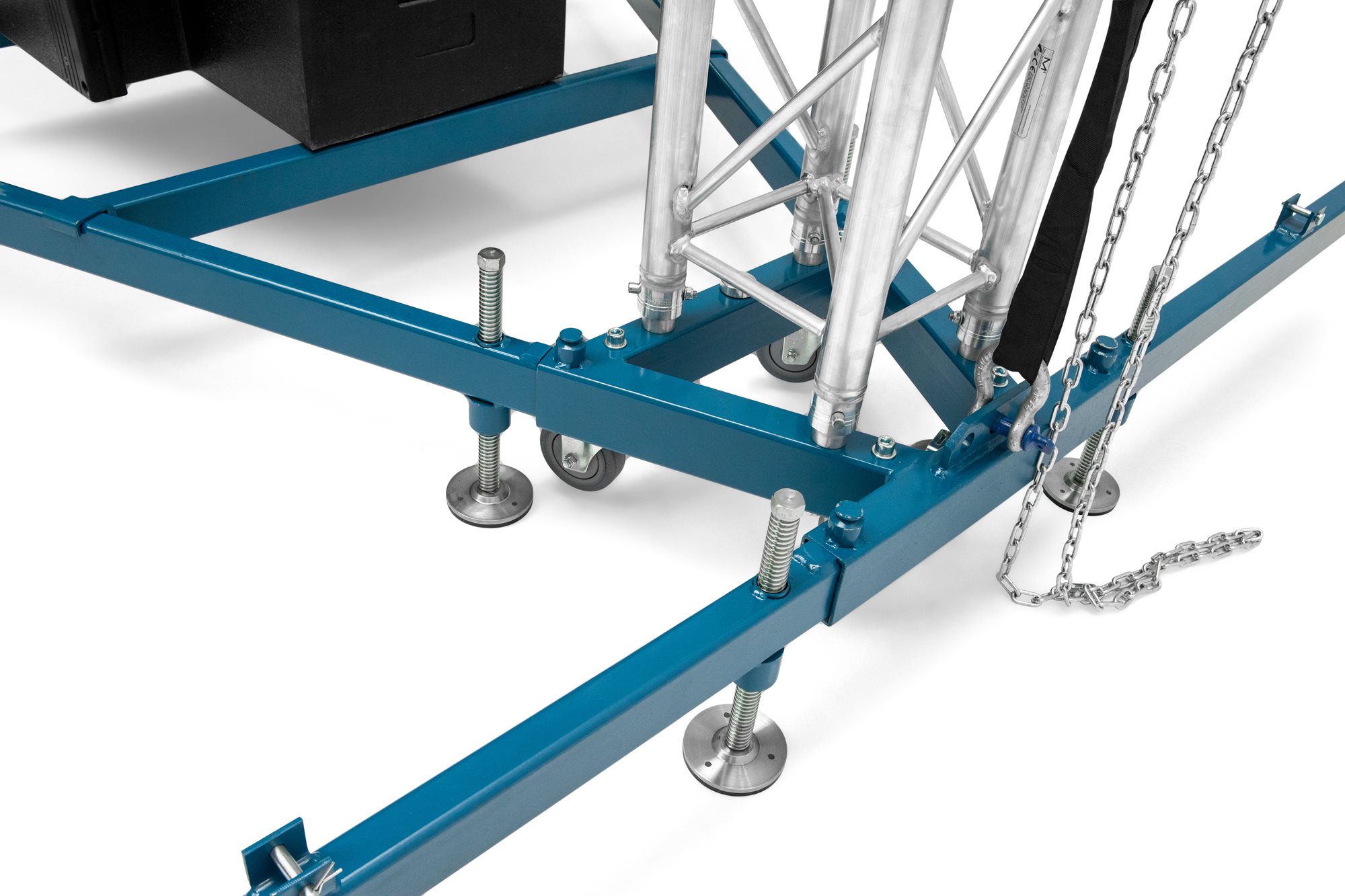

Multiple attachment points on base for connection of hoists and safeties
Powder coat colour finish available on request
Left arrow
Right arrow
Leaflet MT PA5030
MT-PA5030 PA Tower (300 kg)
Compact PA fly tower for smaller, indoor or outdoor live event systems.
Available colors:
Code
MT-PA5030 5m
Height
5 m
Max. SWL
300 kg
