Detailed information

Key benefits

  • Compact self climbing LED tower with integrated ballast platform
  • MT1 towers with central M390 bridge & M290 rear stabilising base frame
  • Obstruction free viewing for audience
  • Operate with manual chain block or electric chain hoist
  •  EXE hoists recommended
  • Fast connection for quick, simple and secure assembly
  • Full structural calculation report & build manual available
  • Cantilever Line Array arms
  • Powder coat colour finish available on request




Technical specification
Dimensions   LED screen size 6x4 m 19,70x13,10 ft
A Internal width 6,65 m 21.82 ft
B Overall external width 9,39 m 30.81 ft
C Overall external depth 4,48 m 14.70 ft
D Clearance 7,08 m 23.23 ft
E Overall height 8,03 m 26.35 ft
F PA wing - internal width 1,07 m 3.51 ft

Loading capacity
Loading capacity   LED screen size 6x4 m 19,70x13,10 ft
LED Screen 6x point loads equally divided 250 kg 551 lbs
  Max. total load 1500 kg 3306 lbs
PA wing Point load 250 kg 551 lbs
* See structural report for exact load positioning

Operational specifications
Design standarts DIN EN 13814 (2012)
DIN EN 1991 / Eurocode 1
DIN EN 1999 / Eurocode 9
DIN EN 1993 / Eurocode 3
Fairground and amusement park machinery and structures
Actions on structures
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management Out of service
In service
27,0m/s - 100km/h - 62mph (Max. gust wind speed)
17,8m/s - 64km/h - 40mph (Max. gust wind speed)
* above in-service wind speed; PA to be removed and screen lowered to ground and supported at top
by horizontal truss connected to towers at height of stabilizer tubes
Ballast 2x 900kg / 1982lbs placed at back side cross trusses, as close as possible to the sides. If screen weight is lower as 1500kg / 3306lbs, 50% of the difference shall be placed on each front tower base
Customized Customisation, i.e. truss configuration, alternative dimensions, on requirement. Always verify with Milos your screen dimensions, weight and rigging for correct configuration

Transportation data
Self-weight LED screen size 6x4 m 19,70x13,10 ft
* Exact self-weight depends on configuration 652 kg 1436 lbs
Transport volume * Packed in carton boxes and bubble foil 8 m3 282 ft3

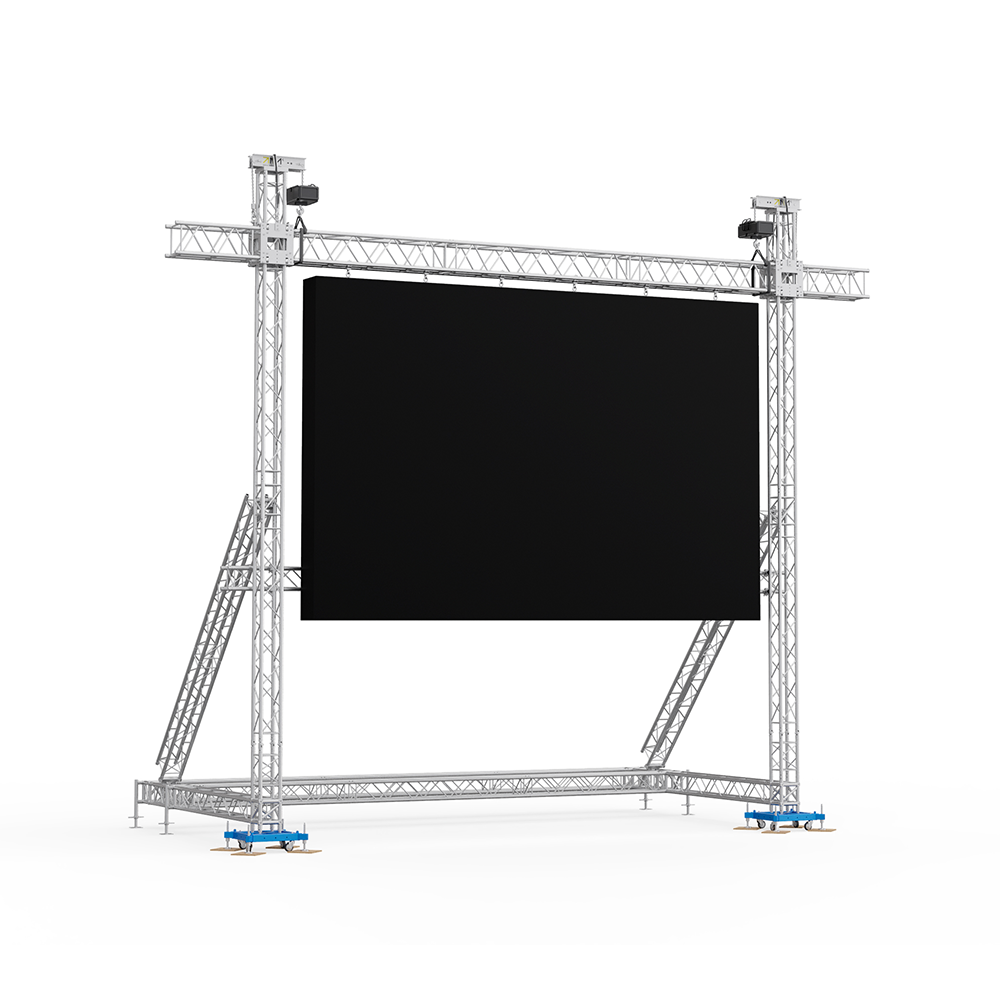

LSG0 LED screen structures

Compact LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly.
Available colors:
Code
LSG0 6x4
Self Weight
652 kg
