S-M1450 Rectangular Steel Truss

Rectangular steel truss for the most demanding applications
Code
S-RTW
Width
770 mm
Height
1450 mm
Main Tube
101.6 x 4 mm
Braces
60.3 x 4 mm / 48.3. x 3 mm
Self Weight
130 kg/m

Download PDF

Basic info

Description

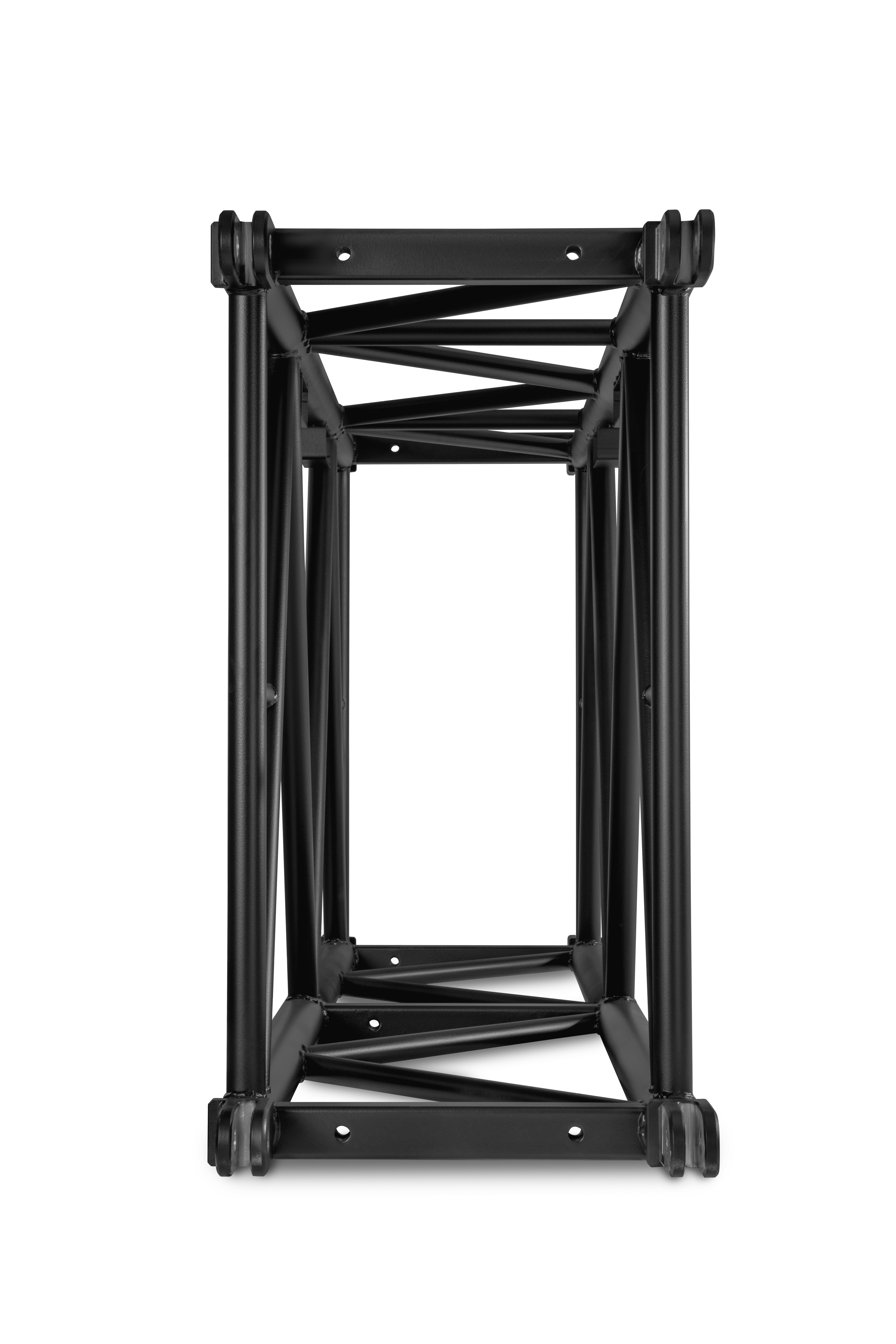

The 1451 x 771 mm MILOS 1450 Rectangular ultra-strength truss is made from special, ultra-high-strength steel alloys and handles 2.2 times more load than aluminium truss with similar dimensions at just double the weight.

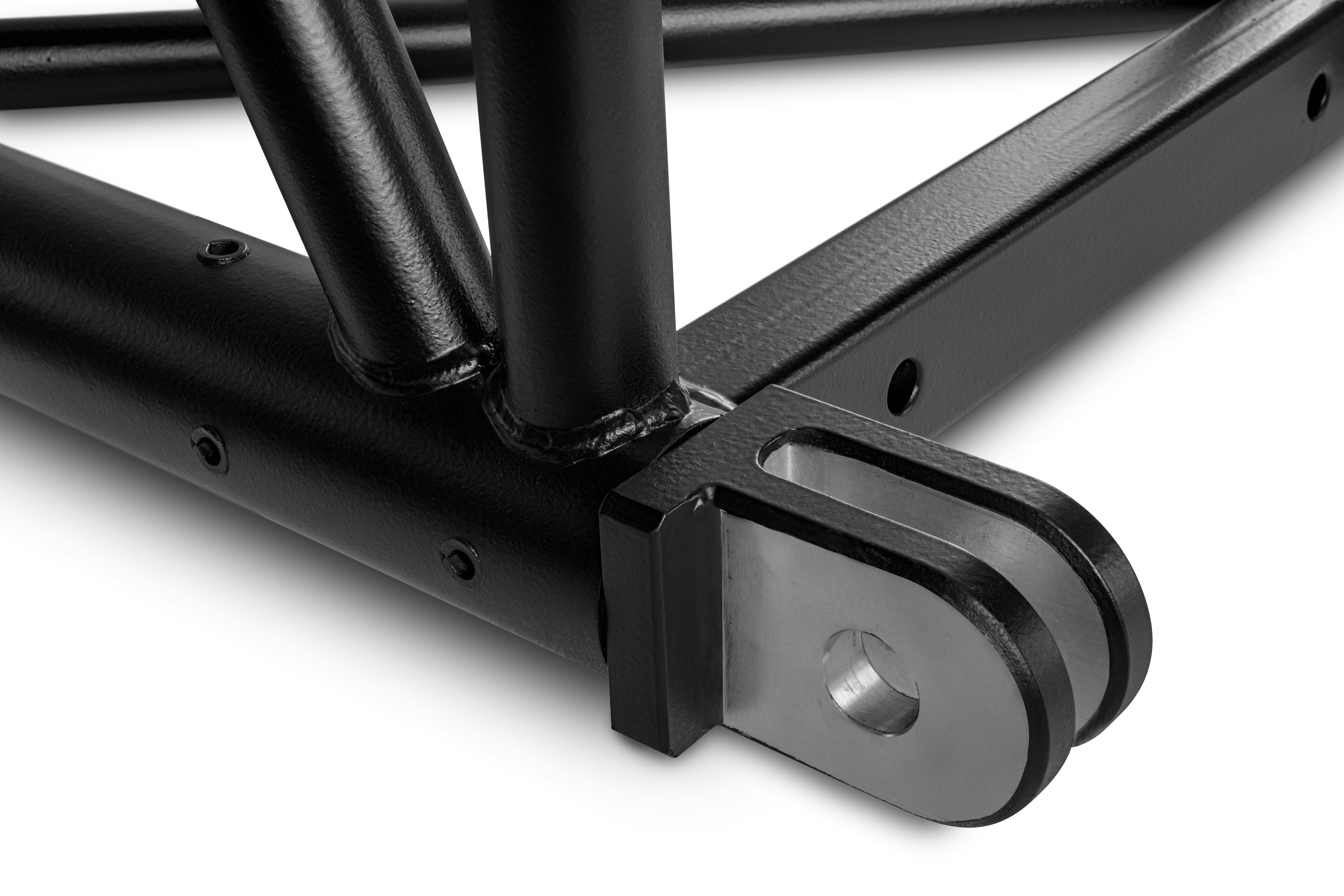

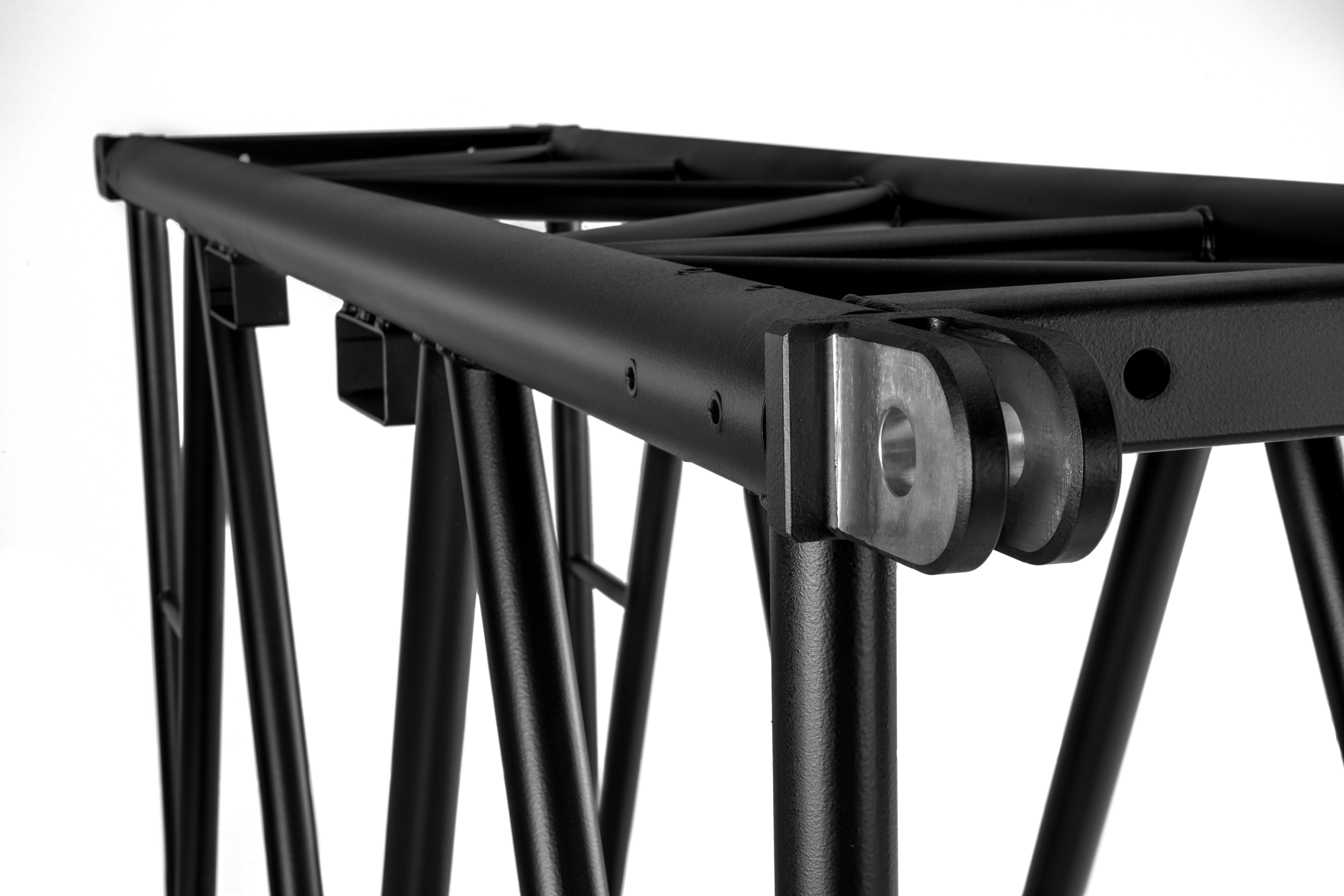

It features connection points in the end frames and compression tubes for slinging relevant framework nodes. It also has additional tubes to assist with climbing up the truss. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.





Key benefits

  • Webbing pattern allows the insertion of cross trusses
  • Compression tubes at important rigging points
  • Tubes on the side to assist in climbing
  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Greatly increases load capacity when used in place of aluminium truss with similar dimensions
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength

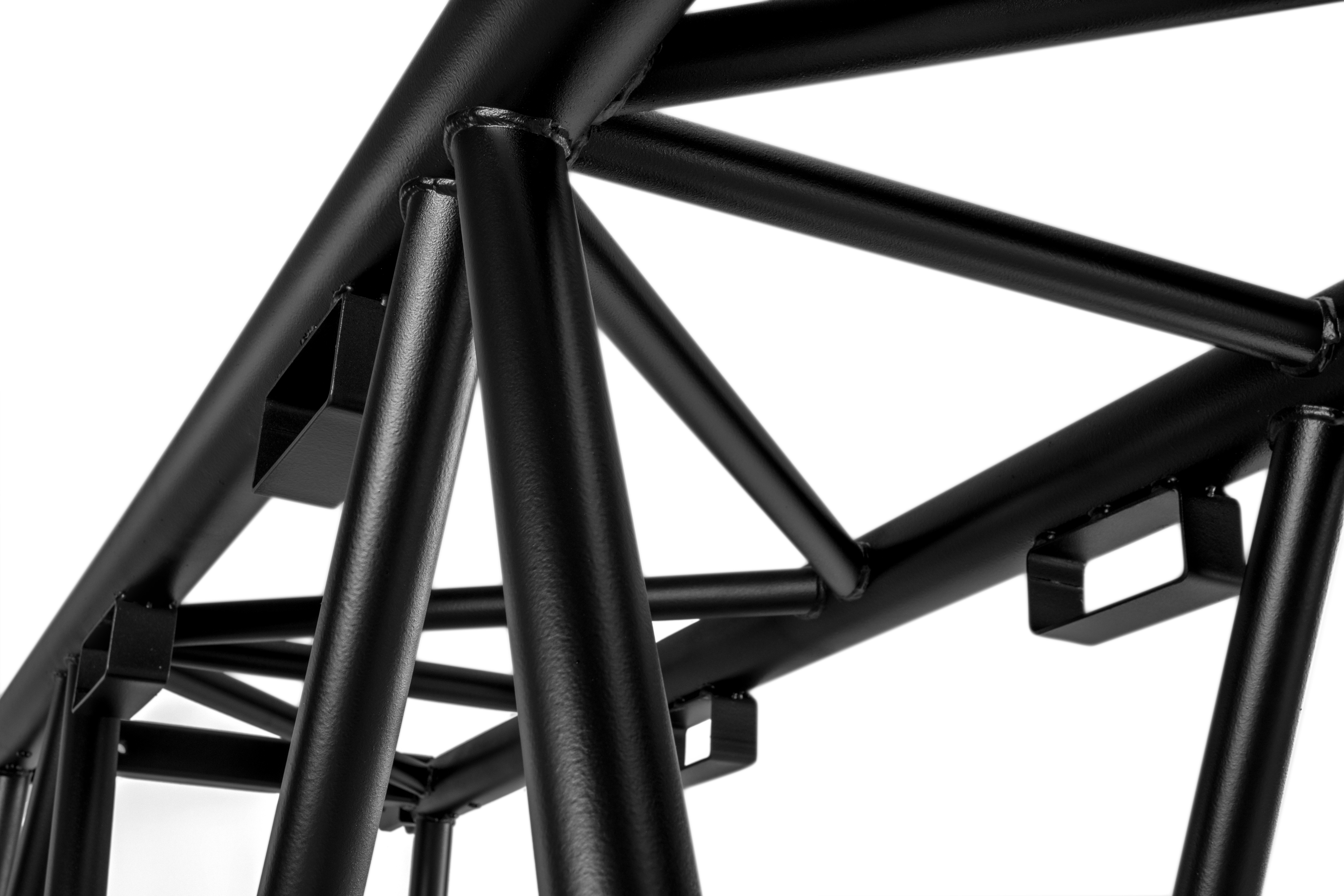

  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • Optimised webbing pattern for ease of use when assembling cross trusses
  • End braces with 22mm holes for lateral connection

Tables

Loading chart
Span 15 m 20 m 25 m 30 m 35 m 40 m 45 m 50 m
Point load 30379 kg 22272 kg 17291 kg 13873 kg 11348 kg 9381 kg 7786 kg 6452 kg
Deflection 47 mm 85 mm 134 mm 195 mm 269 mm 358 mm 462 mm 582 mm
Two point load 21123 kg 16704 kg 12968 kg 10405 kg 8511 kg 7036 kg 5840 kg 4839 kg
Deflection 56 mm 107 mm 167 mm 241 mm 329 mm 432 mm 549 mm 681 mm
Three point load 14082 kg 11136 kg 8646 kg 6937 kg 5674 kg 4691 kg 3893 kg 3226 kg
Deflection 52 mm 99 mm 156 mm 226 mm 310 mm 408 mm 520 mm 649 mm
Four point load 10561 kg 9280 kg 7205 kg 5780 kg 4728 kg 3909 kg 3244 kg 2688 kg
Deflection 50 mm 105 mm 165 mm 238 mm 325 mm 427 mm 543 mm 675 mm
Distributed load 2816 kg 2083 kg 1383 kg 925 kg 648 kg 469 kg 346 kg 258 kg
Deflection 41 mm 98 mm 164 mm 236 mm 323 mm 424 mm 540 mm 671 mm
