S-M530 Quatro Steel Truss

530 mm tower truss sections that let you take ultra heavy loads ultra high
Code
S-QTPT
Width
530 mm
Height
530 mm
Main Tube
60.3 x 4 mm
Braces
33.7 x 4 mm
Self Weight
55 kg/m

Download PDF

Basic info

Description

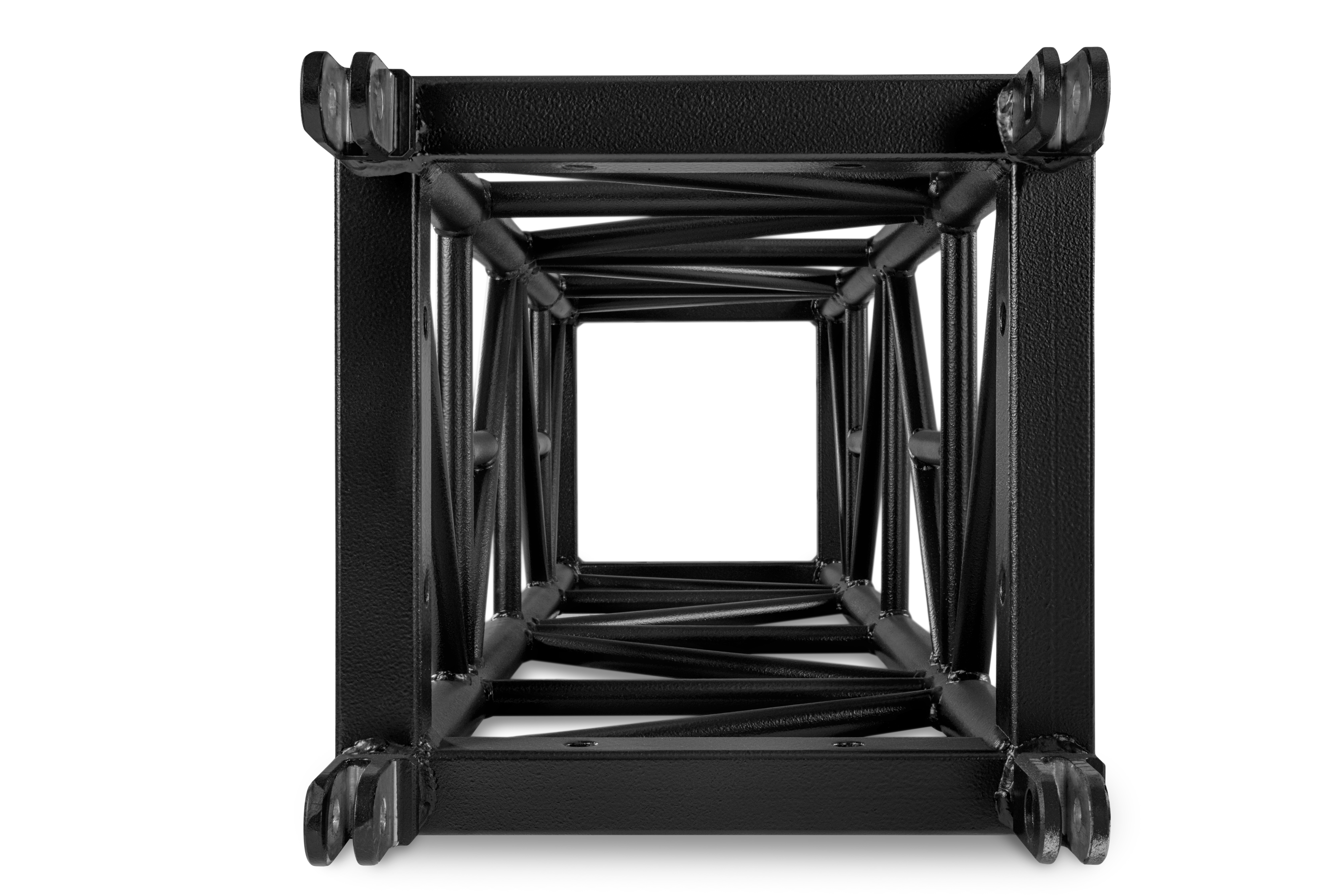

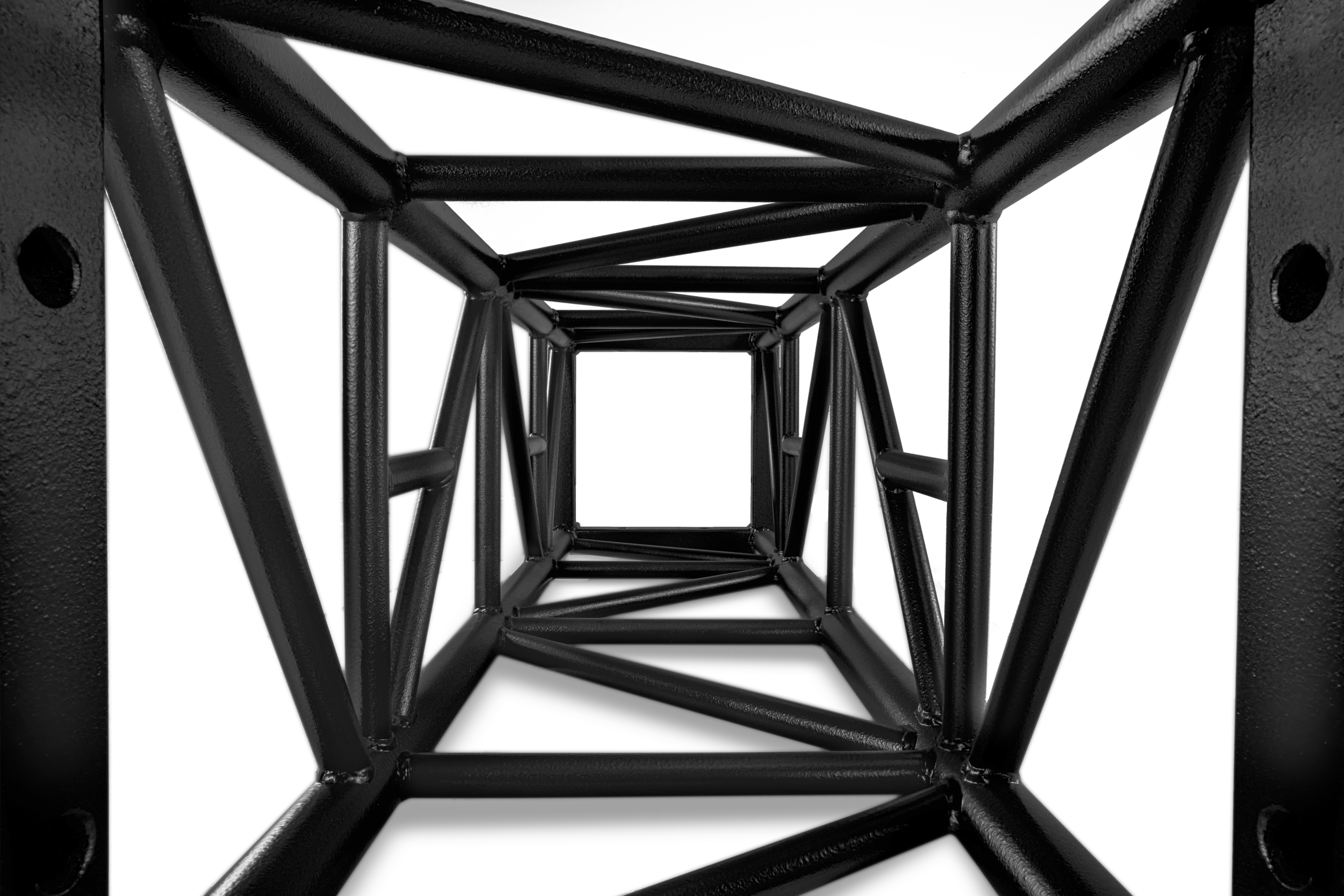

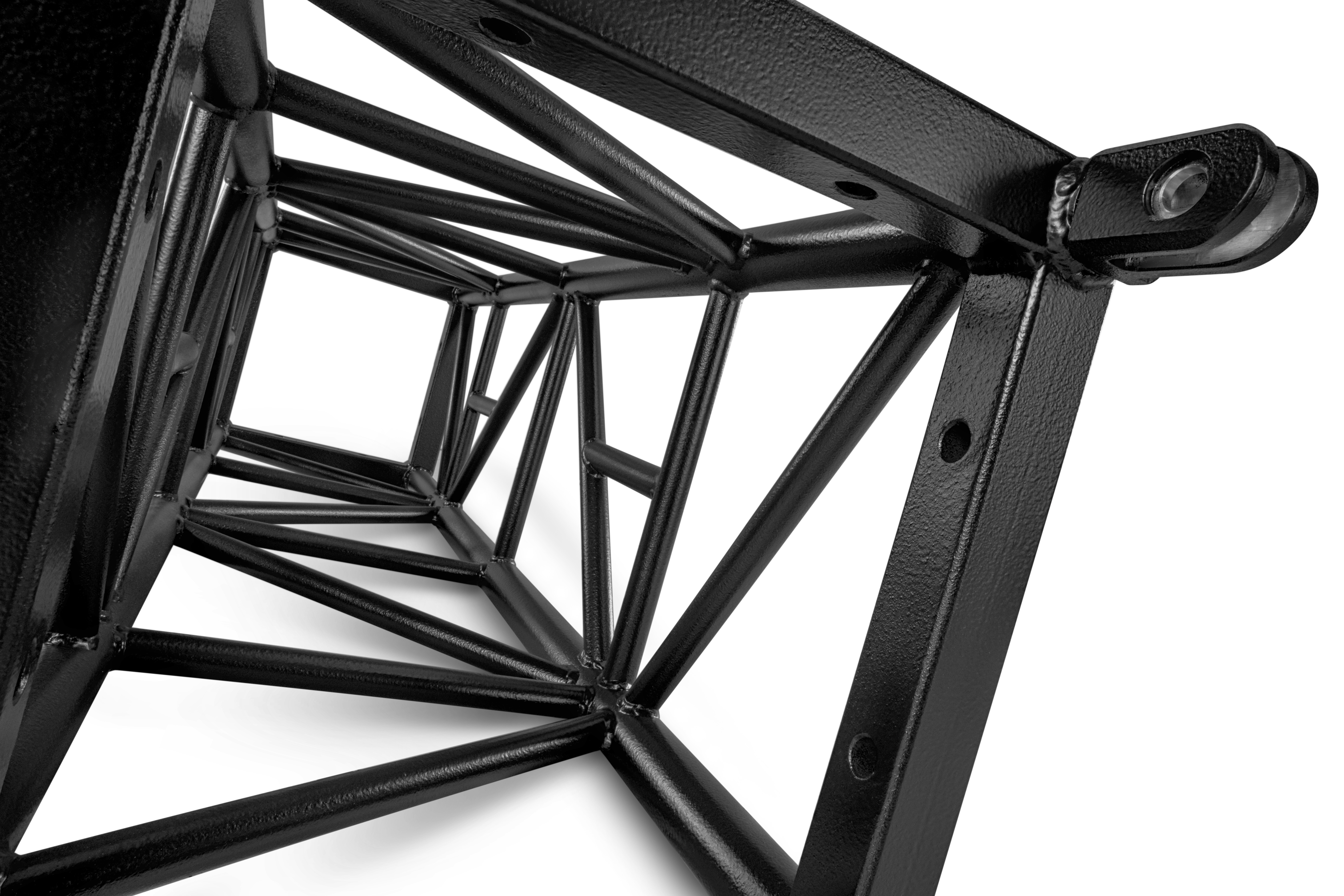

The 530 x 530 mm MILOS 530 Quatro high-strength steel tower section is made from special, high strength steel alloys and is designed for huge ground supports and roof systems with high loads. The sturdy end frames feature conection points on all sides and can easily be climbed due to its horizontal and diagonal bracings. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.


Key benefits

  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Greatly increases load capacity when used in place of aluminium truss with similar dimensions
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Matt black, impact-resistant industrial paint finish
  • End braces with 22mm holes for lateral connections

Tables

Loading chart
Span 5 m 10 m 15 m 20 m 25 m 31 m 35 m
Point load 11655 kg 7021 kg 4474 kg 3139 kg 2288 kg 1577 kg 1210 kg
Deflection 9 mm 47 mm 107 mm 194 mm 311 mm 498 mm 655 mm
Two point load 5825 kg 5265 kg 3356 kg 2354 kg 1716 kg 1183 kg 908 kg
Deflection 8 mm 59 mm 133 mm 238 mm 374 mm 581 mm 746 mm
Three point load 3885 kg 3510 kg 2237 kg 1570 kg 1144 kg 789 kg 605 kg
Deflection 7 mm 55 mm 125 mm 224 mm 354 mm 554 mm 716 mm
Four point load 2914 kg 2852 kg 1864 kg 1308 kg 954 kg 657 kg 504 kg
Deflection 7 mm 57 mm 131 mm 235 mm 370 mm 576 mm 740 mm
Distributed load 2331 kg 1141 kg 597 kg 314 kg 183 kg 102 kg 69 kg
Deflection 6 mm 47 mm 130 mm 233 mm 368 mm 573 mm 737 mm
