Detailed information

Description

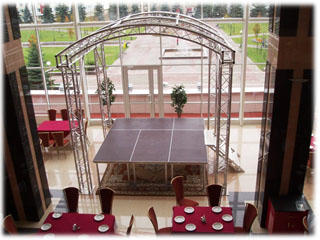

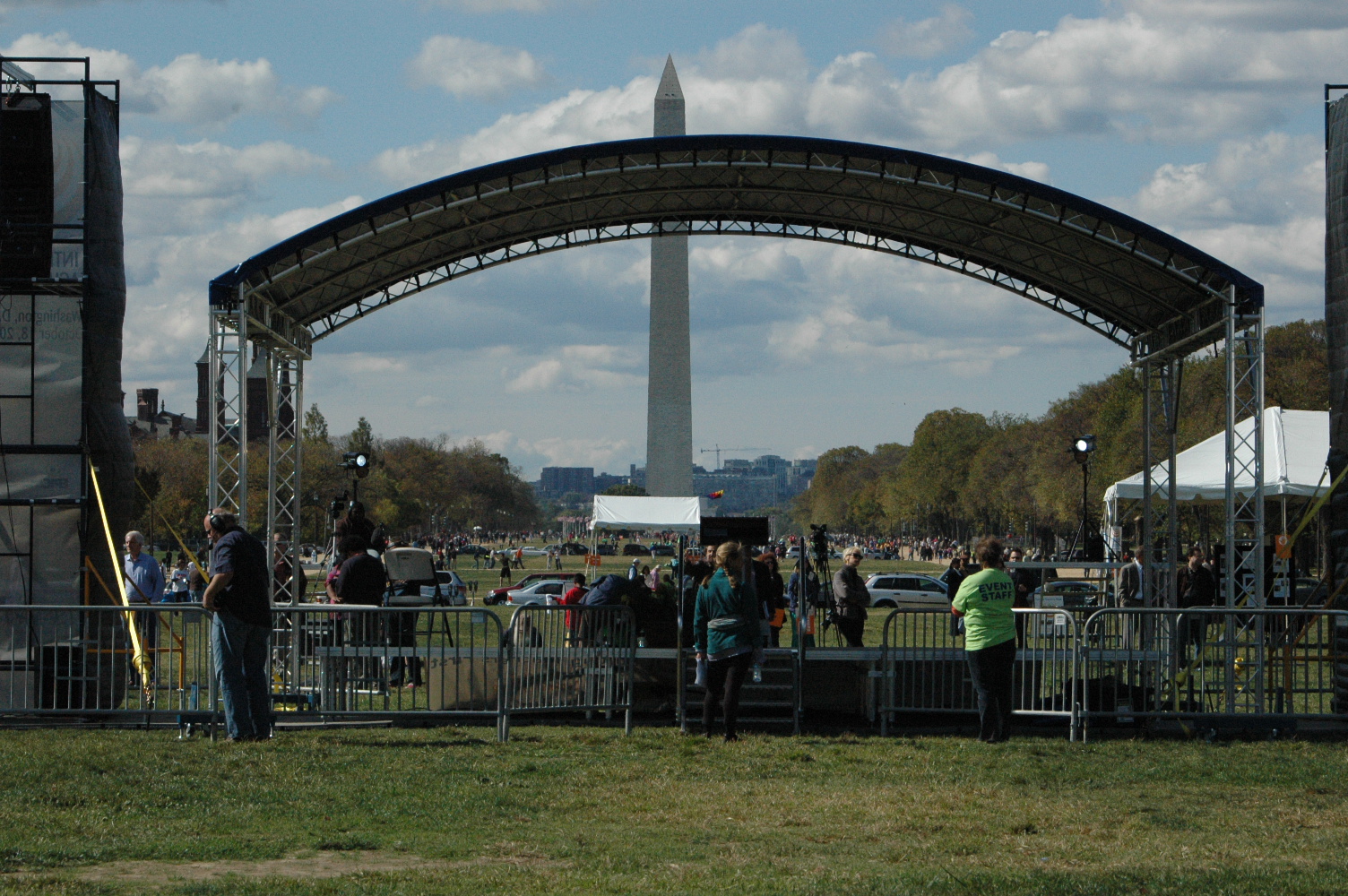

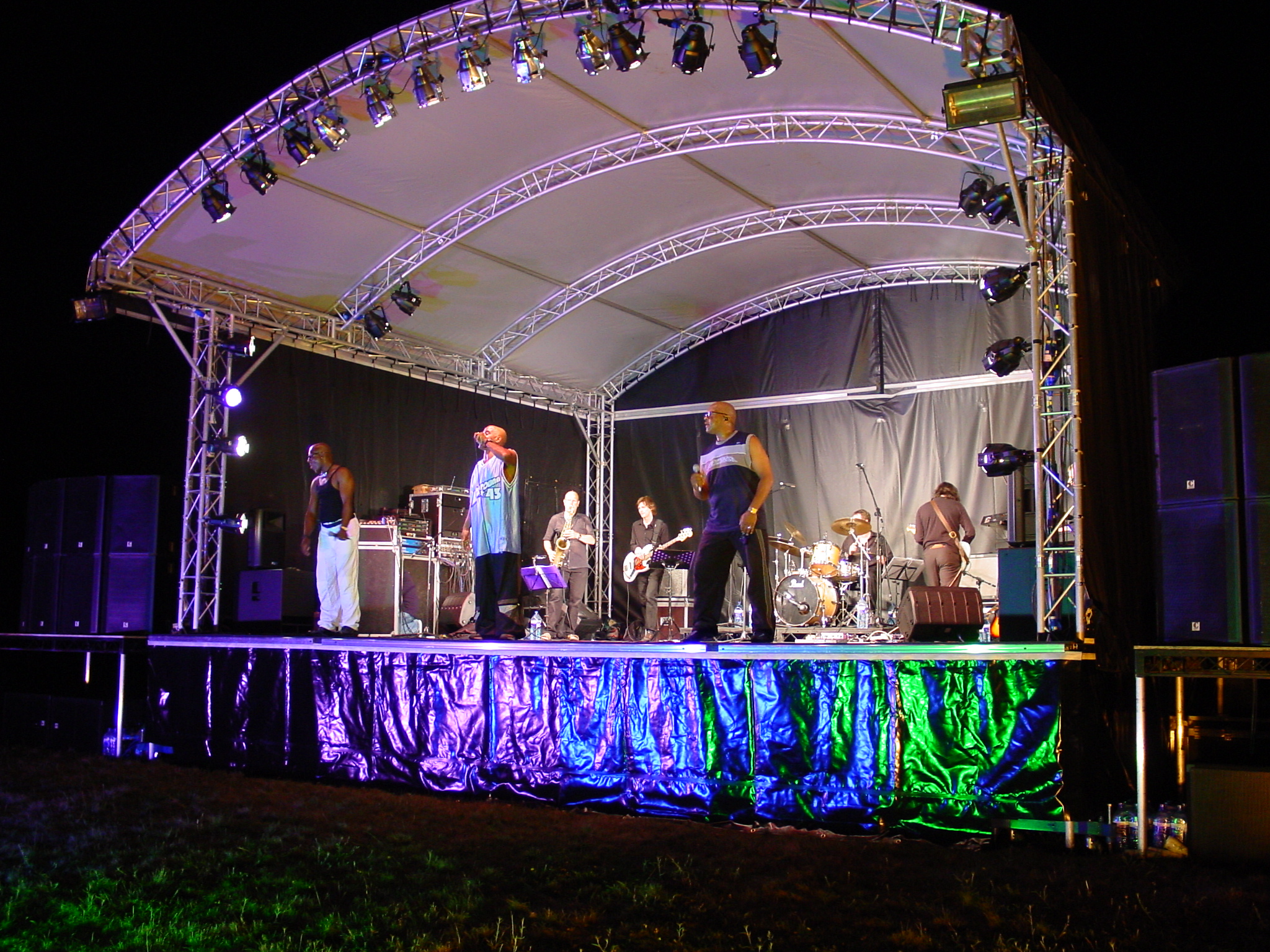

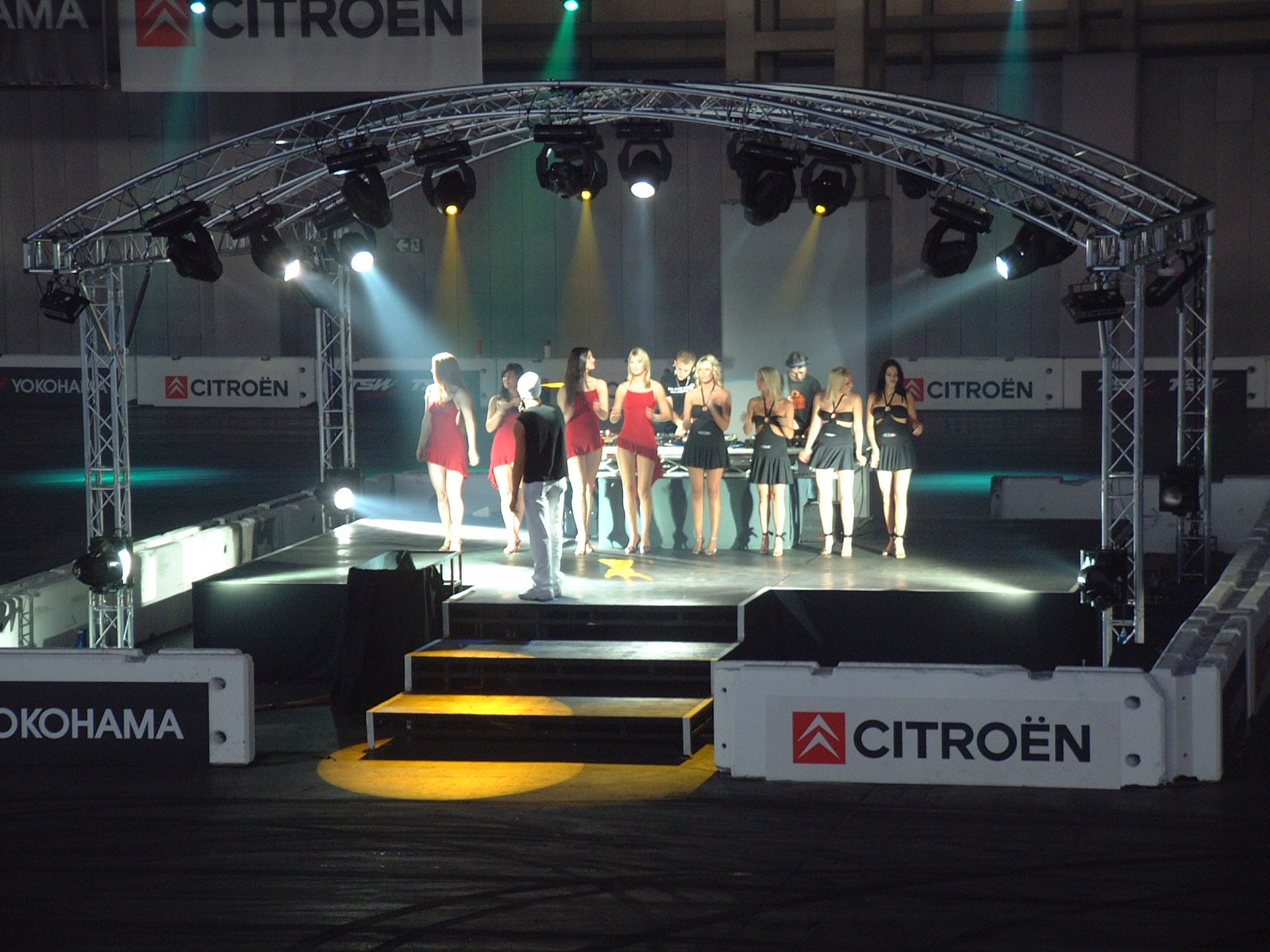

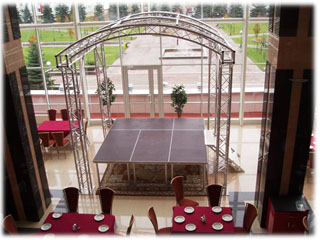

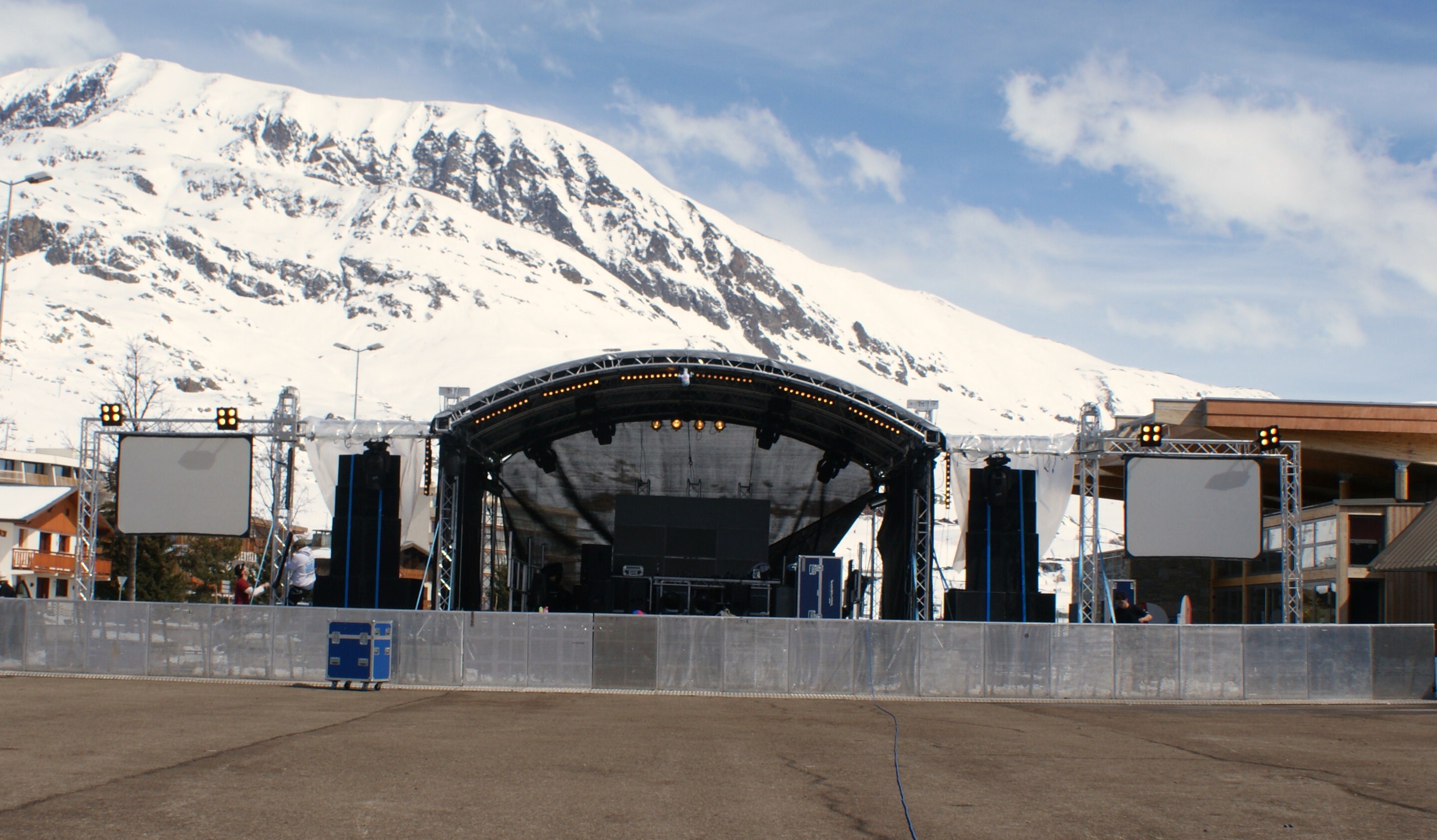

The MR1 roof was created with small bands or street festivals in mind. Its special arched aluminium roof, which serves as the frame, gives it a dynamic look while allowing water to easily drain from the canopy. No more hassles with water pockets and problems associated with water build-up. It's a temporary roof which provides you with a permanent solution.

Call or e-mail us today for more information or to request a quote.


Key benefits


  • 6x4 m (19.69x13.12 ft) & 8x6 m (26.25x19.69 ft) Arched Roofs set-up for temporary events
  • Heavy-duty M290 Quatro structure with Trio arches
  • Fixed leg or self-climbing MT1 option 8x6 m only (26.25x19.69 ft)
  • Fast connection for quick, simple and secure assembly
  • Supplied complete with internal wind bracing wires & connection accessories
  • Full structural calculation report & build manual available
  • Conversion kit parts available to upgrade from 6x4 m to 8x6 m
  • PVC roof colour and side walls options
  • PA wing options available on request
Technical specifications
Dimensions   Stage size 8x6 m 26.25x19.70 ft 6x4 m 19.70x13.10 ft
A Internal width 8.00 m 26.25 ft 6 m 19.69 ft
B Overall external width 9.06 m 29.72 ft 6.06 m 19.88 ft
C Internal depth 6.40 m 20.99 ft 4.40 m 14.44 ft
D Overall external depth 7.48 m 24.54 ft 5.43 m 17.81 ft
E Clearance side 4.43 m 14.53 ft 4.43 m 14.53 ft
F Clearance middle 5.69 m 18.67 ft 5.42 m 17.78 ft
G Overall height 5.96 m 19.55 ft 5.69 m 18.67 ft
H Cantilever depth 1.21 m 3.97 ft 1.21 m 3.97 ft

Loading capacity
Loading capacity   Stage size 8x6 m 26.25x19,70 ft 6x4 m 19.70x13,10 ft
Arches Uniformly distributed (UDL) 15 kg/m 10 lbs/ft 15 kg/m 10 lbs/ft
Side truss Uniformly distributed (UDL) 20 kg/m 13 lbs/ft 20 kg/m 13 lbs/ft
PA load 2x Point load each cantilever 250 kg 551 lbs 250 kg 551 lbs
* See structural report for exact load position

Operational specifications
Design standards DIN EN 13814 (2005)
DIN EN 1991 / Eurocode 1
DIN EN 1999 / Eurocode 9
DIN EN 1993 / Eurocode 3
Fairground and amusement park machinery and structures
Actions on structures
Design of aluminium structures
Design of steel structures
• All our structures are produced as standard under EN 1090 EXC2, including the necessary guy wires, instruction manual and engineering report
Wind management Out of service
In service
28.0m/s - 100km/h - 62mph (Max. gust wind speed)
17.8m/s - 64km/h - 40mph (Max. gust wind speed)
* Calculations based on 100% closed side canopies
* Side canopies and loads to be removed above this wind speed if not considered
Ballast This can vary per tower from 350kg / 771lbs up to 2400kg / 5286lbs and depends on:
• If tower bases are interconnected or free-standing
• Layout of canopies
• Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions)
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls B1 fire retardant canopy on request, single piece format or kedder profiles on request
Silver grey; other colours or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customised Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) in accordance with requirement

Transportation data
Self-weight Stage size 8x6 m 26.25x19,70 ft 6x4 m 19.70x13.10 ft
* Exact self-weight depends on configuration 1344 kg 2960 lbs 1034 kg 2278 lbs
Transport volume * Packed in carton boxes and bubble foil 20 m3 706 ft3 15 m3 530 ft3

MR1

MR1 Arched (6x4 m & 8x6 m)

Arched, aluminium roof that gives your events a dynamic look, while eliminating water pockets and water build-up. Perfect choice for small bands or street festivals.
Code
MR1 8x6m, MR1 6x4m
Max. Stage Dimensions
8x6 m
Max. Clearance
5.96 m
Max. SWL
540 kg
Wind Rating
64/100 km/h (in/out of service)
