MDT1 Tent (6x6 m)

Quick and easy to assemble party tent for outdoor events, such as catering, private parties, and other social gatherings.
Max. Stage Dimensions
6 x 6 m
Max. Clearance
3.64 m
Max. SWL
100 kg
Wind Rating
52km/h (in service)

Download PDF

Basic info

Description

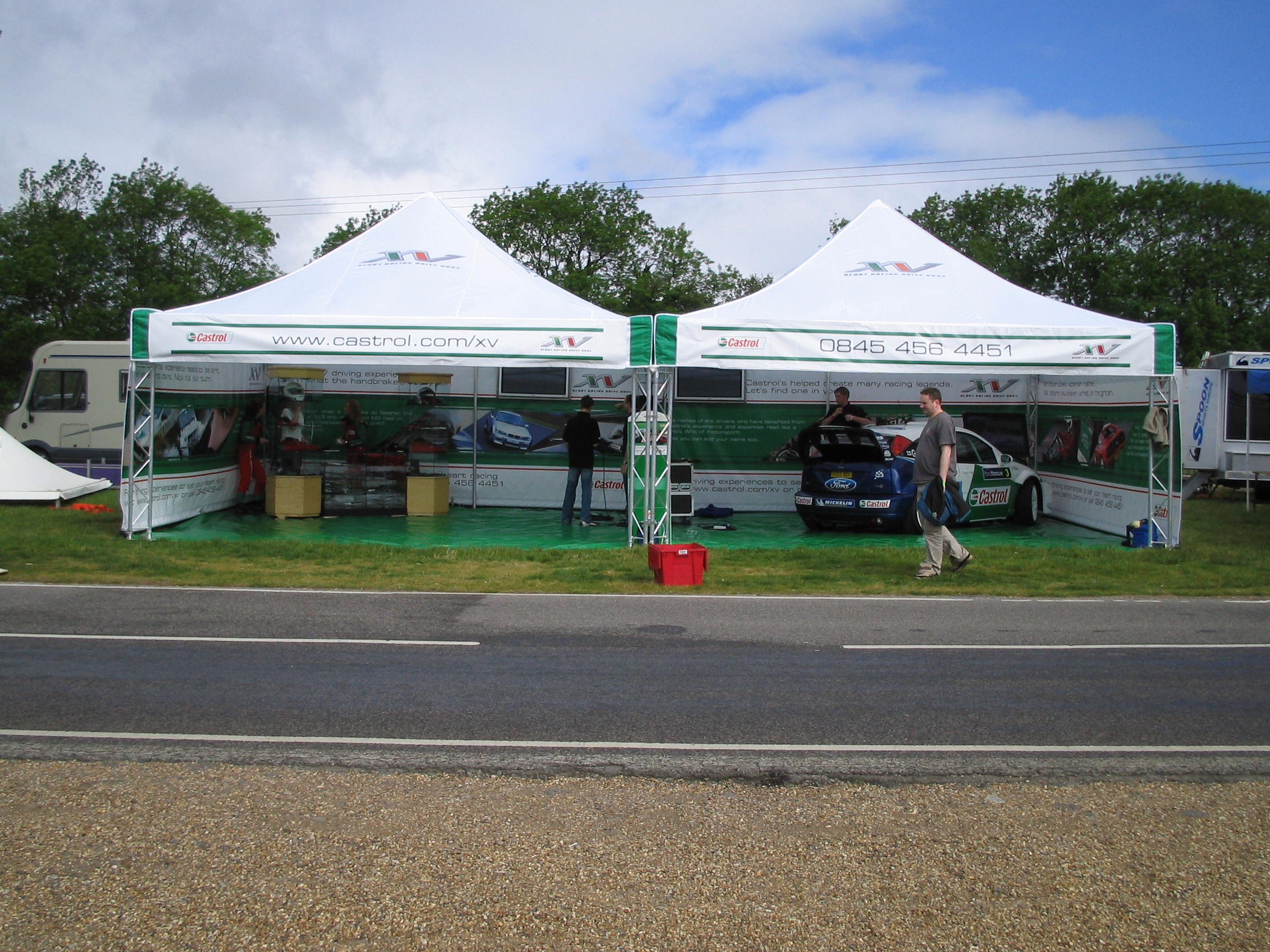

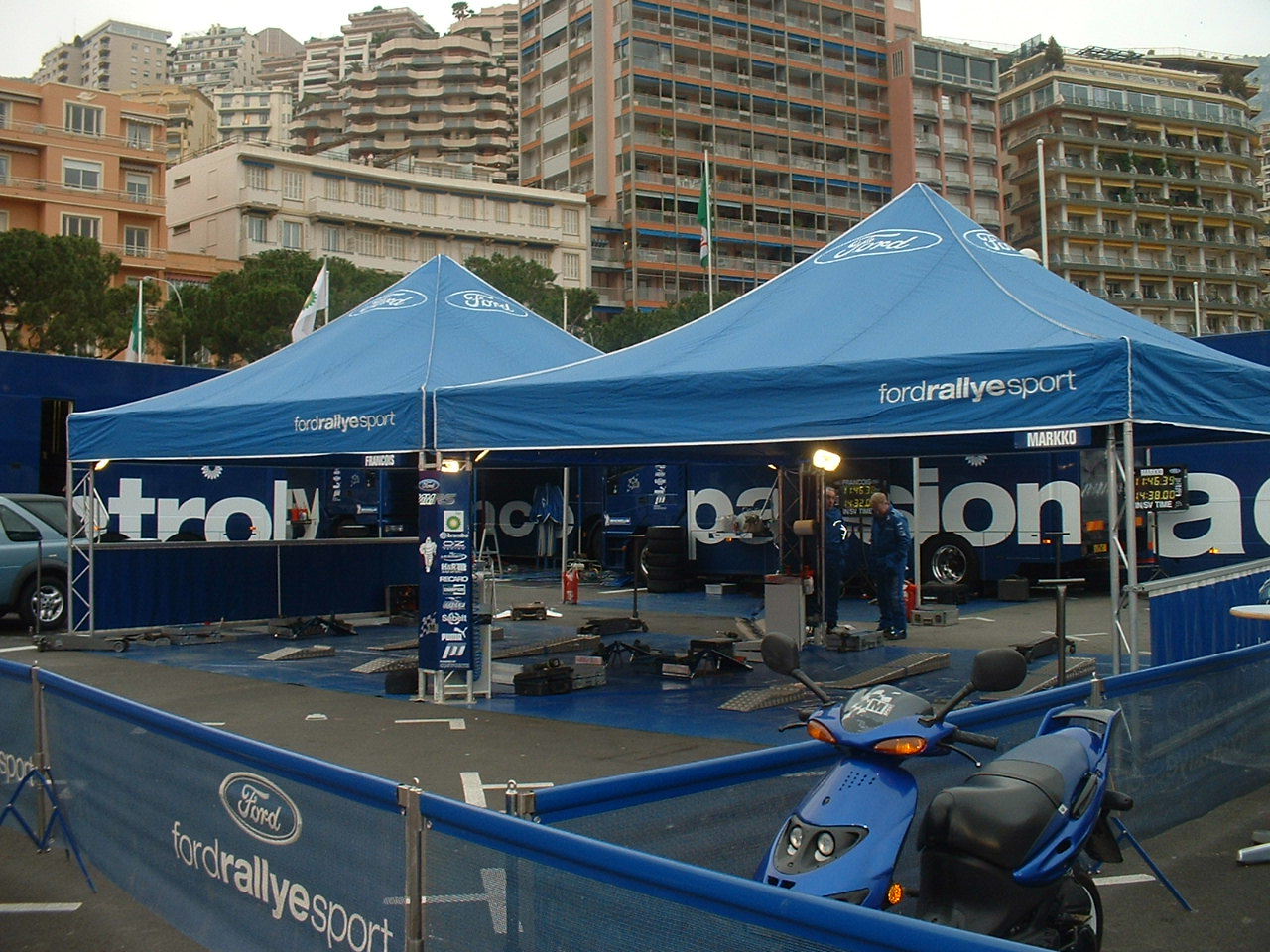

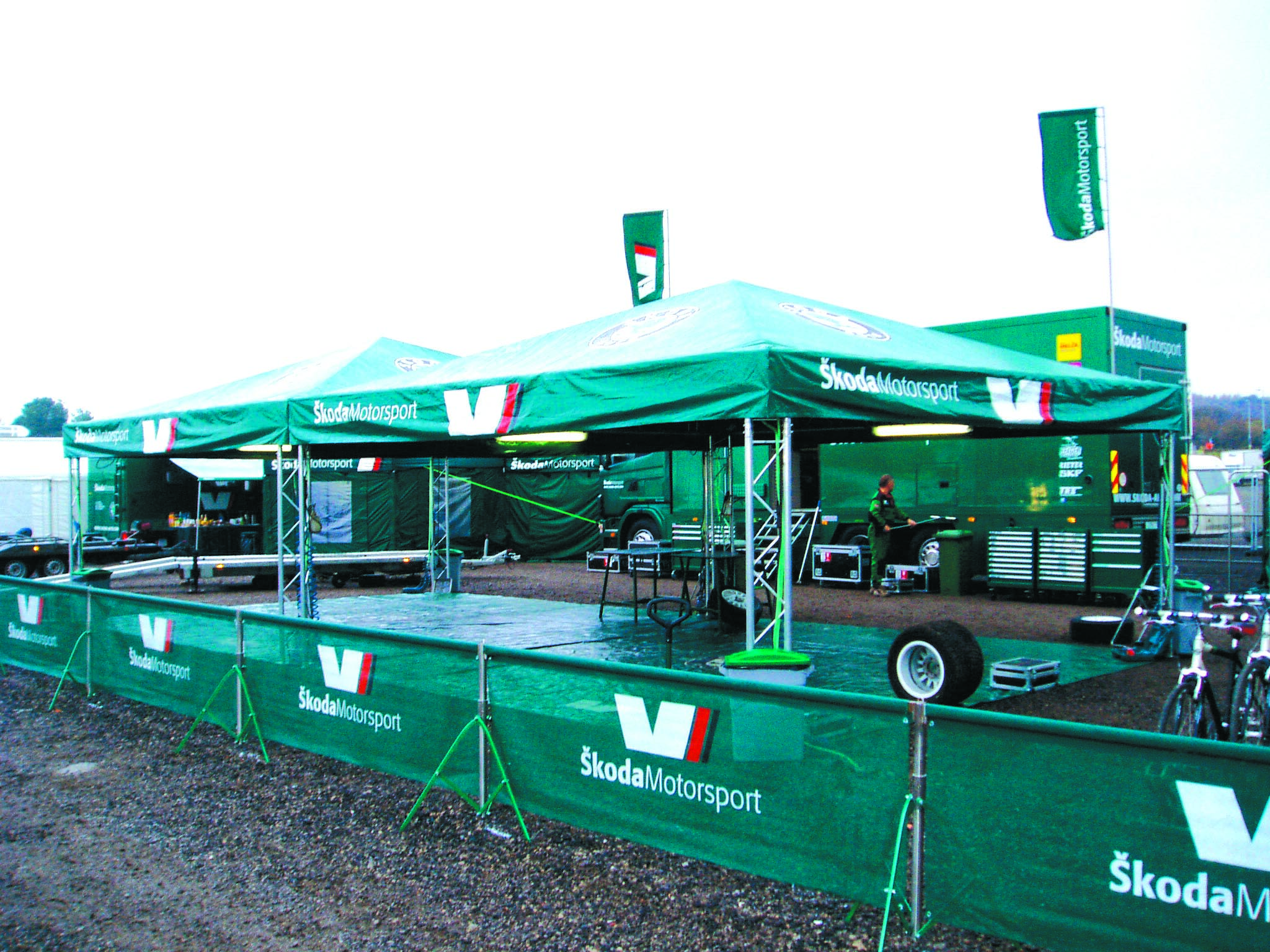

The Milos MDT1 is a quick and easy party tent solution that provides a safe and dry environment for your outdoor events. Perfect for catering, private parties, and a wide range of other outdoor social events.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • Modular M290 series Event-Tent solutions
  • Perfect for sports, temporary events & parties
  • 2-tube Duo construction for lightweight & low volume
  • Fast connection for quick, simple and secure assembly
  • PVC roof covering included
  • Side walls & digital printing covers options available
  • Easy anchoring design
  • Powder coating on request

Tables

Technical specifications
Dimensions   Stage size 6x6 m 19.7 x 19.7 ft 6x5 m 19.7 x 16.4 ft 5x5 m 16.4 x 16.4 ft
A Internal width 5.56 m 18.24 ft 5.56 m 18.24 ft 4.56 m 14.96 ft
B Overall external width 6.20 m 20.34 ft 6.20 m 20.34 ft 5.20 m 17.06 ft
C Internal depth 5.56 m 18.24 ft 4.56 m 14.96 ft 4.56 m 14.96 ft
D Overall external depth 6.20 m 20.34 ft 5.20 m 17.06 ft 5.20 m 17.06 ft
E Clearance side 2.20 m 7.22 ft 2.20 m 7.22 ft 2.20 m 7.22 ft
F Clearance middle 3.53 m 11.58 ft 3.43 m 11.25 ft 3.34 m 10.83 ft
G Overall height 3.64 m 11.94 ft 3.55 m 11.65 ft 3.45 m 11.32 ft

Loading capacity
Loading capacity   Stage size 6x6 m 19.7 x 19.7 ft 6x5 m 19.7 x 16.4 ft 5x5 m 16.4 x 16.4 ft
Main grid Each corner (x5) 100 Kg 220 lbs 100 Kg 220 lbs 100 Kg 220 lbs
* See structural report for exact load position

Operational specifications
Design standarts DIN 1055-4
DIN 4112
DIN 4113
Actions on structures / wind
Temporary structures
Aluminium constructions
• All our structures are produced as standard under EN 1090 EXC2, including the neccessary guy wires, instruction manual and engineering report
Wind management In service 14m/s - 52km/h - 32.3 mph (Max. gust wind speed)
No side wall canopies are allowed for the data provided
Ballast This can vary from 115kg / 254lbs up to 163kg / 359lbs per column and depends on:
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls B1 fire retardant canopy on request, single piece format
Silver-grey; other colours or inside black on request
B1 fire-retardant side nets in compliance with latest Eurocodes
Customized Customisation (i.e. truss configuration, alternative dimensions) on requirement

Transportation data
Self-weight Stage size 6x6 m 19.7 x 19.7 ft 6x5 m 19.7 x 16.4 ft 5x5 m 16.4 x 16.4 ft
* Exact self-weight depends on configuration 170 kg 374 lbs 158 kg 348 lbs 149 kg 328 lbs
Transport volume * Packed in carton boxes and bubble foil 5,00 m3 176 ft3 4,50 m3 159 ft3 4,00 m3 141 ft3
