MILOS. Flexibility Behind Your Show.

Constructed with bended keder profiles, easily extended to a further distance.

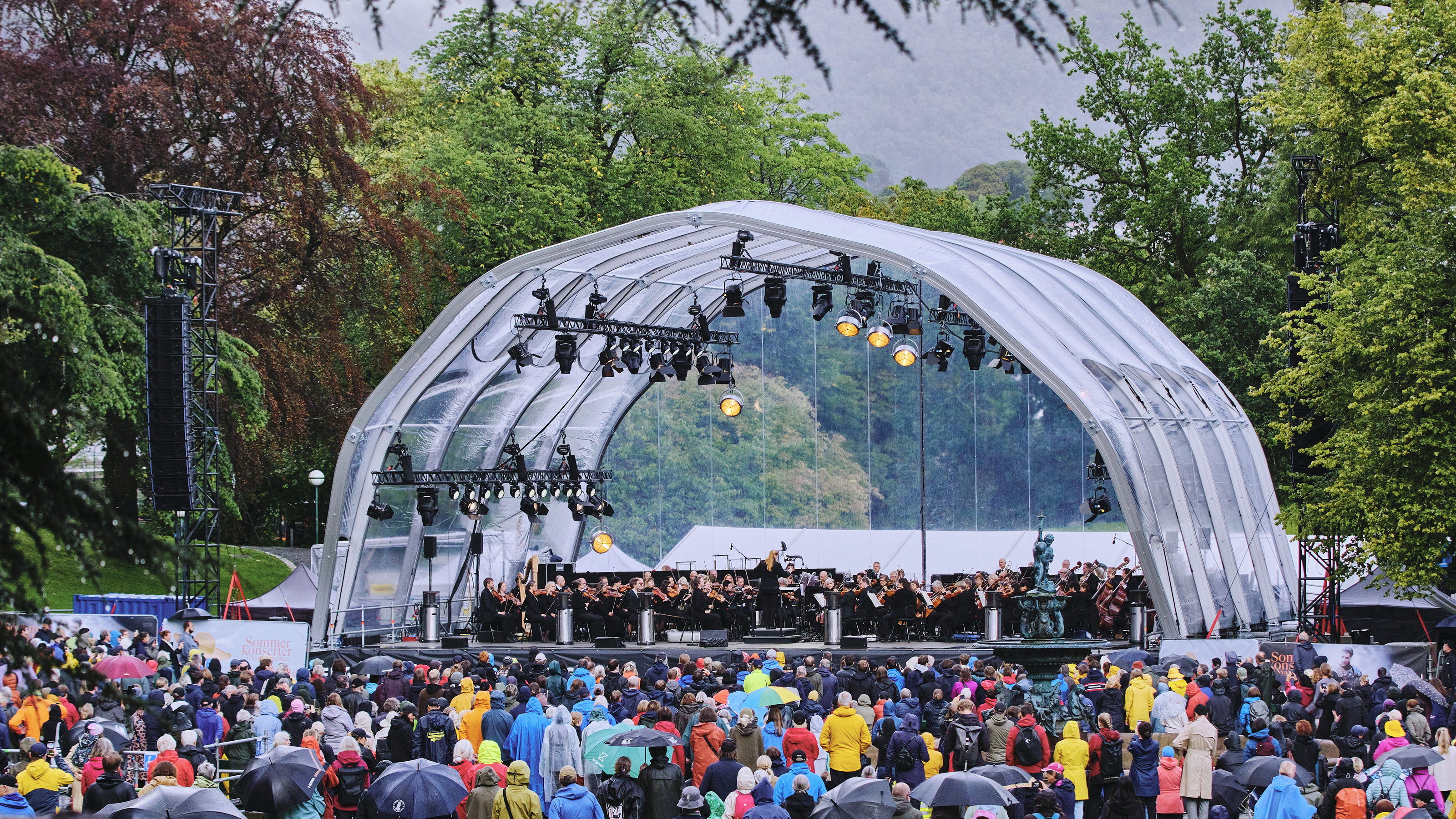

This innovative roof is built with bended keder profiles, allowing for effortless extensions to suit your needs. It boasts an impressive 19 meter (62 ft) span and a clearance height of 9.5 m (31 ft). Each arch can support up to 5 t (11,023 lbs), and a six-arch configuration can handle up to 30 t (66,138 lbs), ensuring robust performance for even the most demanding setups.

Designed for simplicity, the roof’s universal parts enable quick and straightforward assembly. To enhance versatility, you can choose between transparent or solid canopy options, making it adaptable for various event styles and requirements.

This distinctive roof offers an elegant solution for projects that demand both aesthetics and functionality.

Code: I-MR4

Available colors:

Detailed information

Key benefits

19×18 m (62×59') or 14x10 m (45x50') aluminium keder arched roof
Endless depth option by adding more keder arches
19 m (62') span and clearance height of 9.5 m (31') with 19×18 m stage configuration
Loading capacity of up to 5 t (11023 lbs ) per arch (19x18 m)
Standard configuration can support 30 t (66138 lbs)

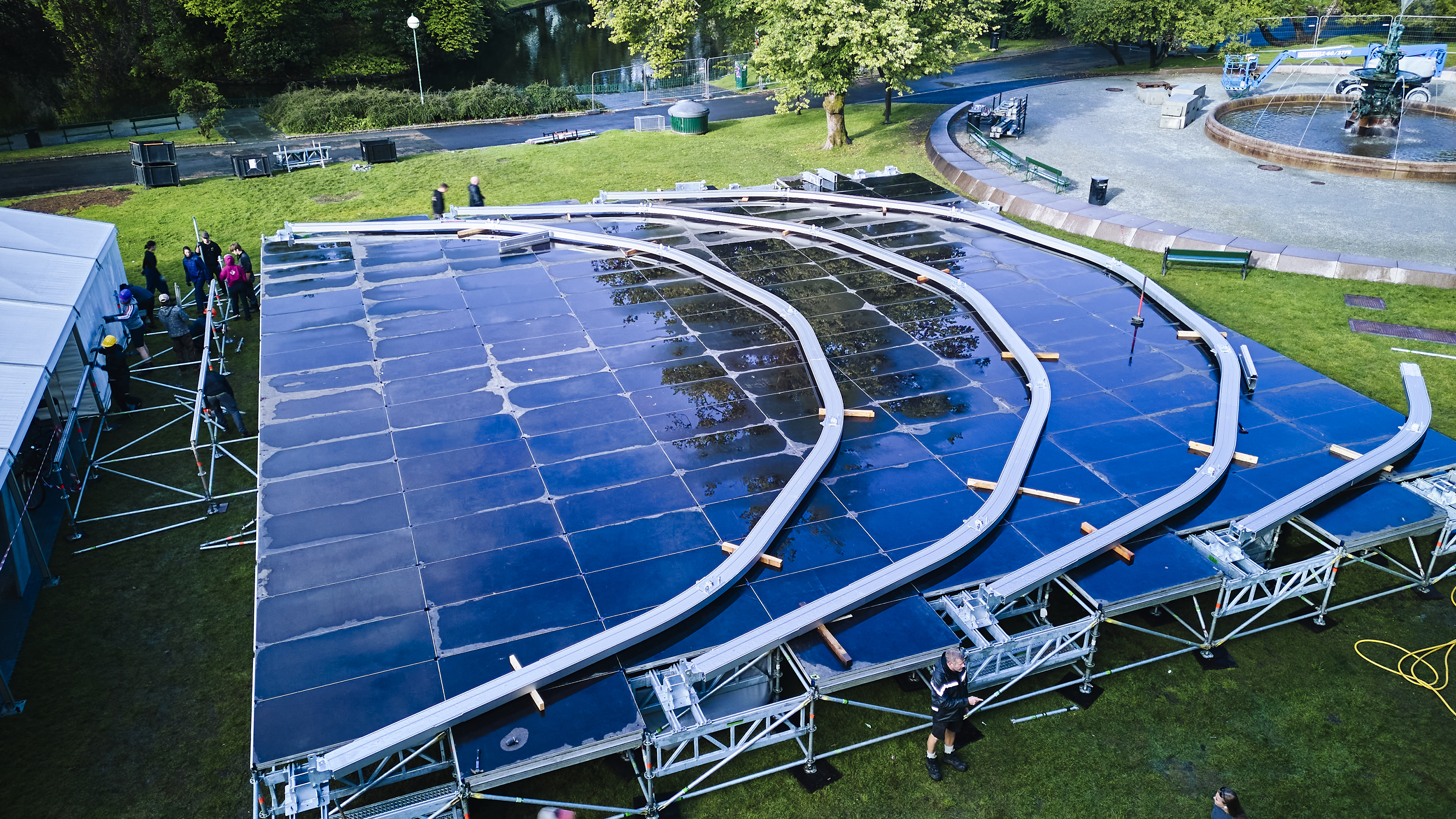

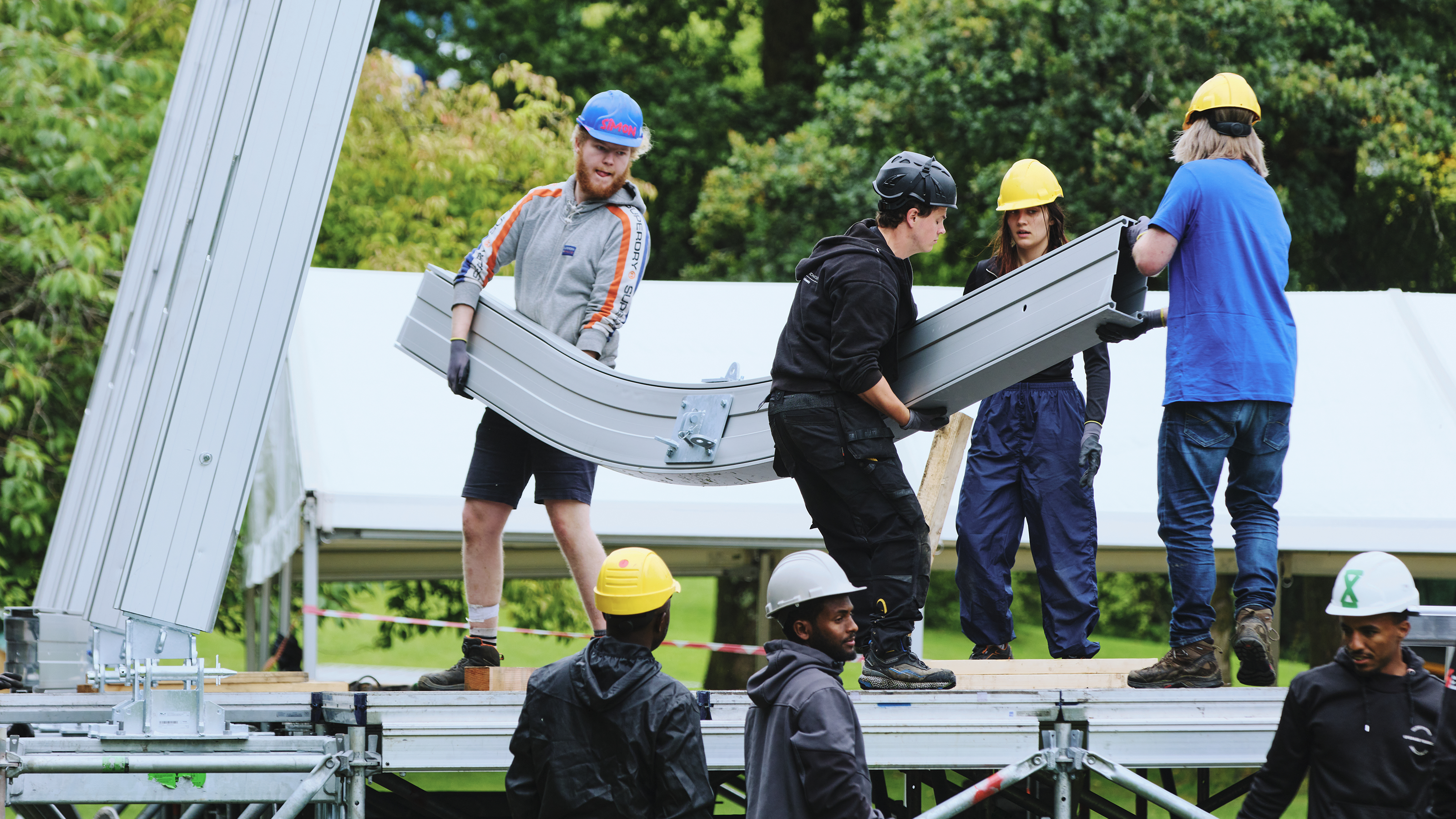

Quick and simple assembly with universal parts

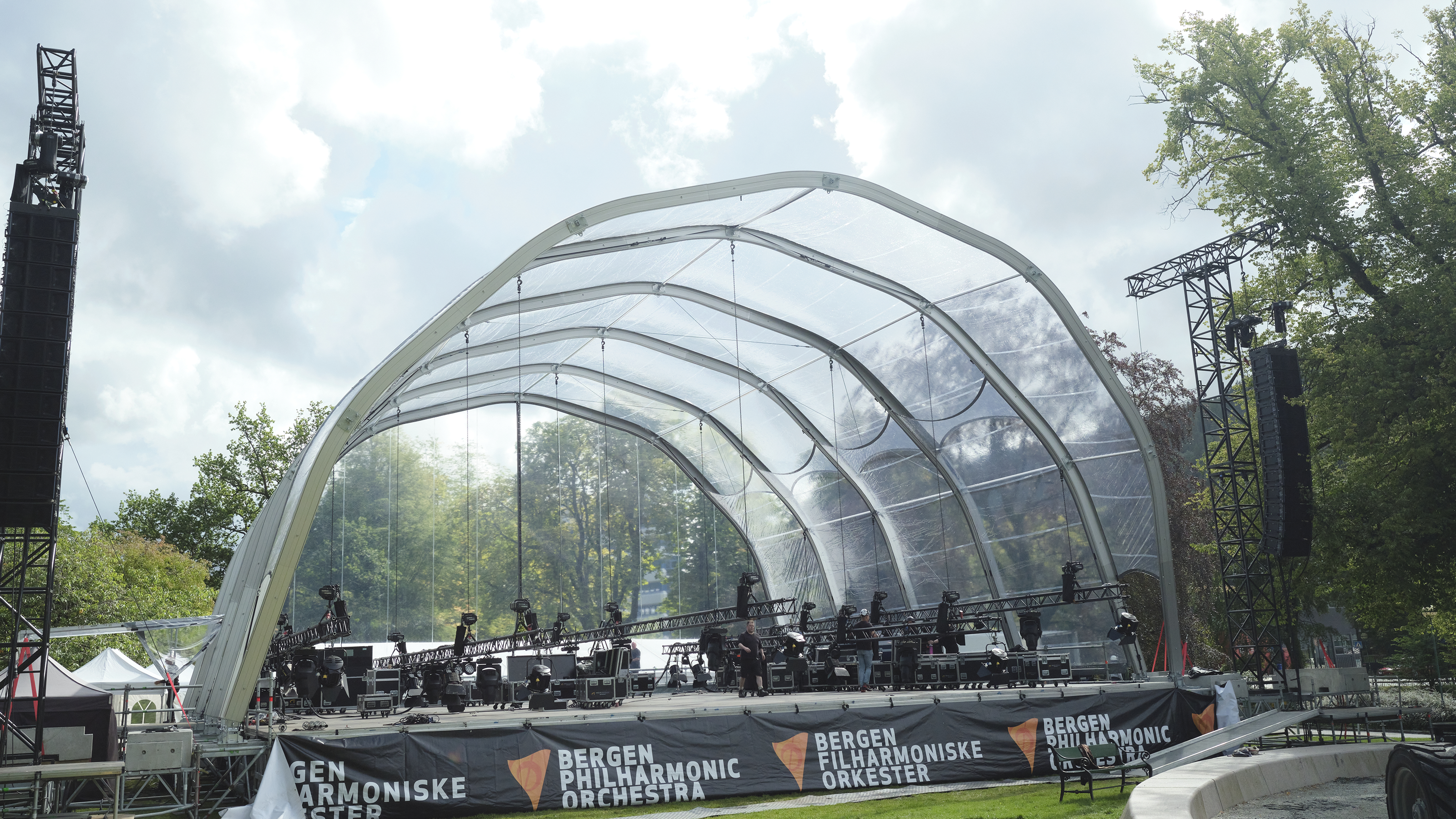

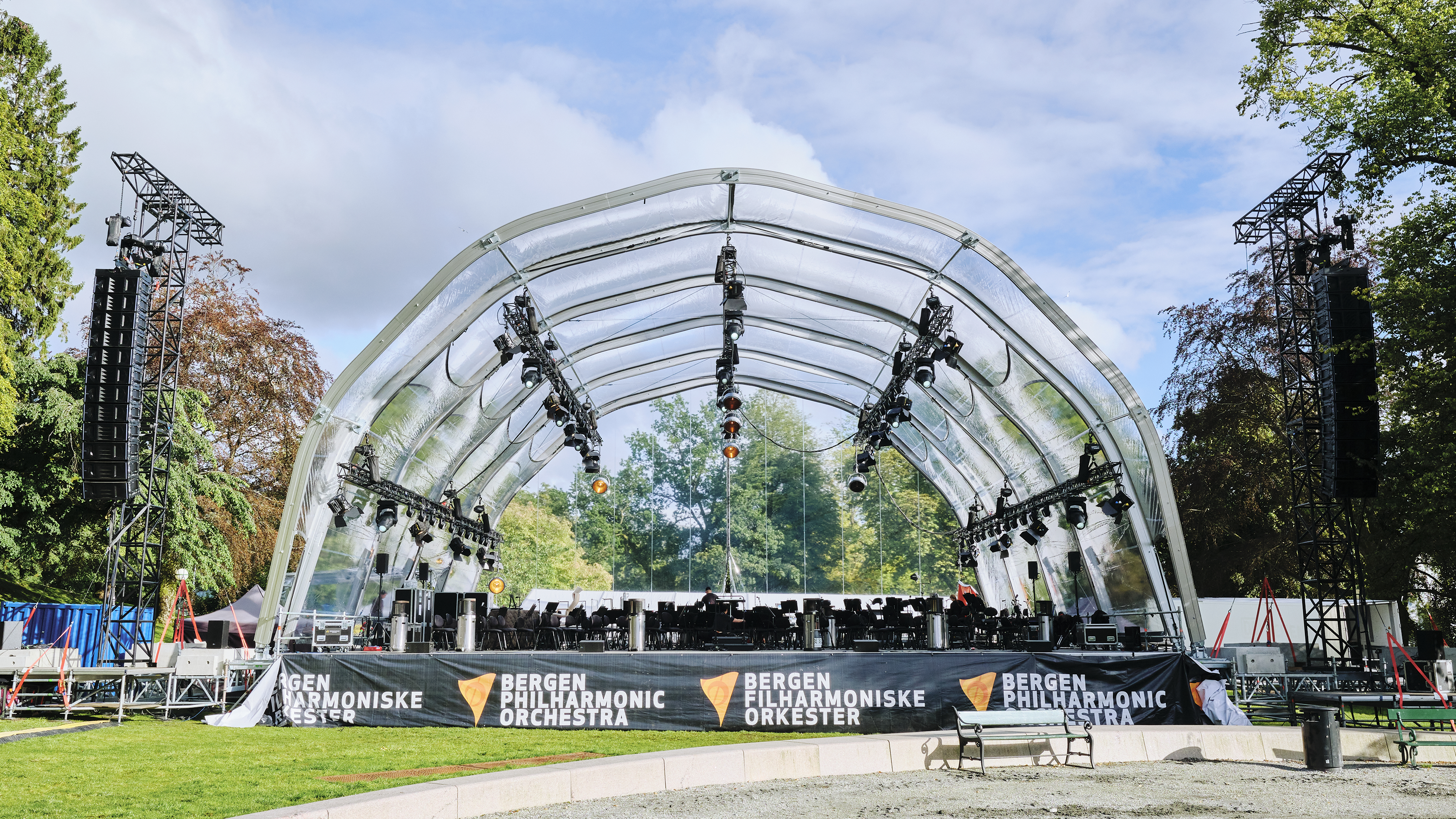

Transparent or solid canopy options available
Easy logistics with special transport frames

Contact Us

Asia

US East

US West

Get your quote

Technical specification
Dimensions		Stage size	19x18 m	62.33x59.05 ft	14x10 m	45.93x32.80 ft
	A	Internal width	19.00 m	62.33 ft	13.75 m	44.11 ft
	B	Overall external width	20.20 m	65.68 ft	15.20 m	49.87 ft
	C	Depth	17.50 m	57.41 ft	10.50 m	34.45 ft
	D	Overall external depth	20.65 m	67.75 ft	12.65 m	41.50 ft
	E	Clearance	9.50 m	31.16 ft	7.05 m	23.13 ft
	F	Overall height	9.80 m	32.15 ft	7.30 m	23.95 ft

Loading capacity
Loading capacity	Stage size	19x18 m	62,33x59,05 ft	14x10 m	45.93x32.80 m
	Each arch	5x1000 kg	5x2204.63 lbs	5x800 kg	5x1764.65 lbs
	Total capacity	30000 kg	66137.00 lbs	20000 kg	44091.00 lbs
	* See structural report for exact load positioning
