Hanging Plate QTB

Hanging Plate QTB

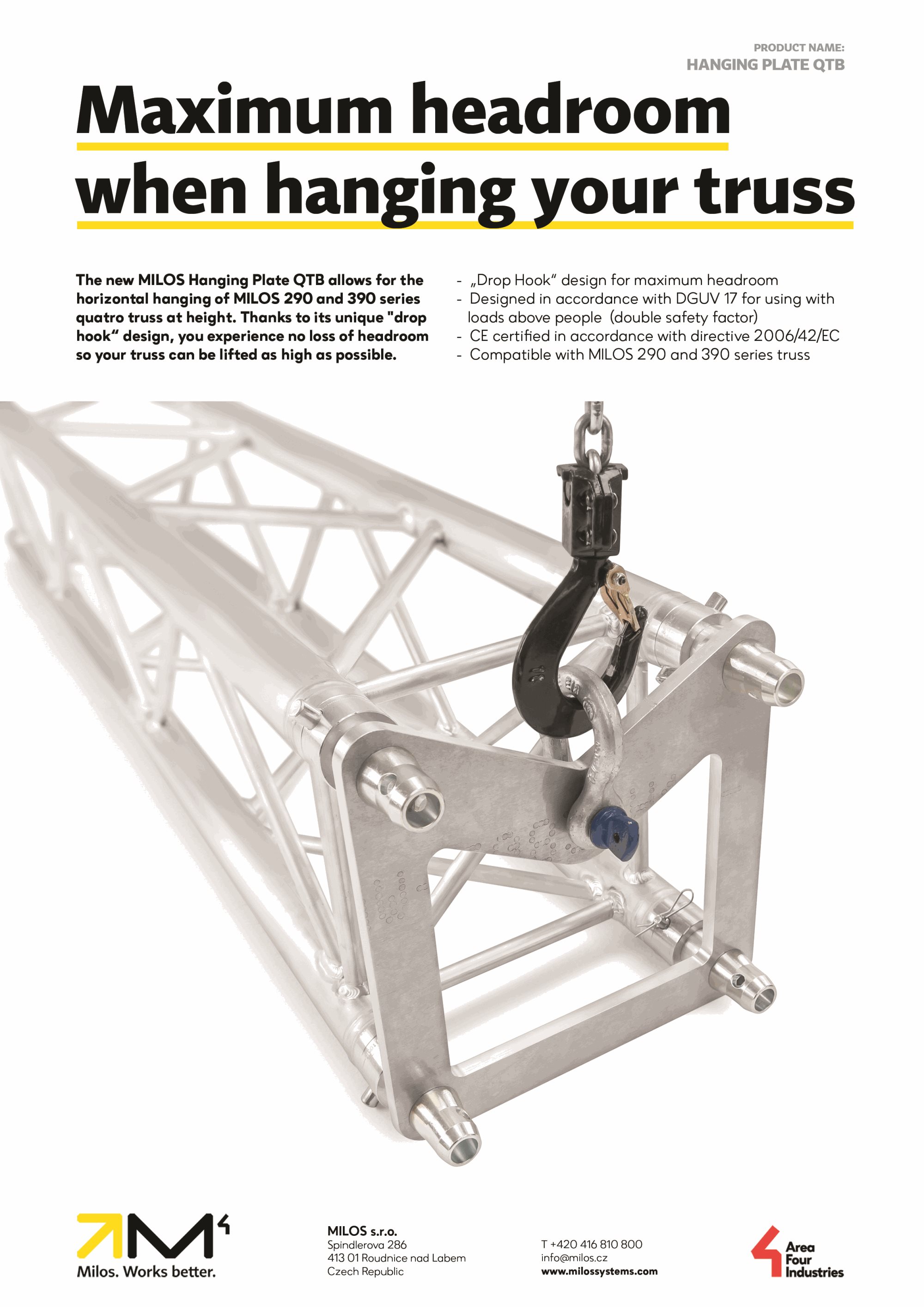

Maximum headroom Hanging Plate QTB for M290 and M390 series truss

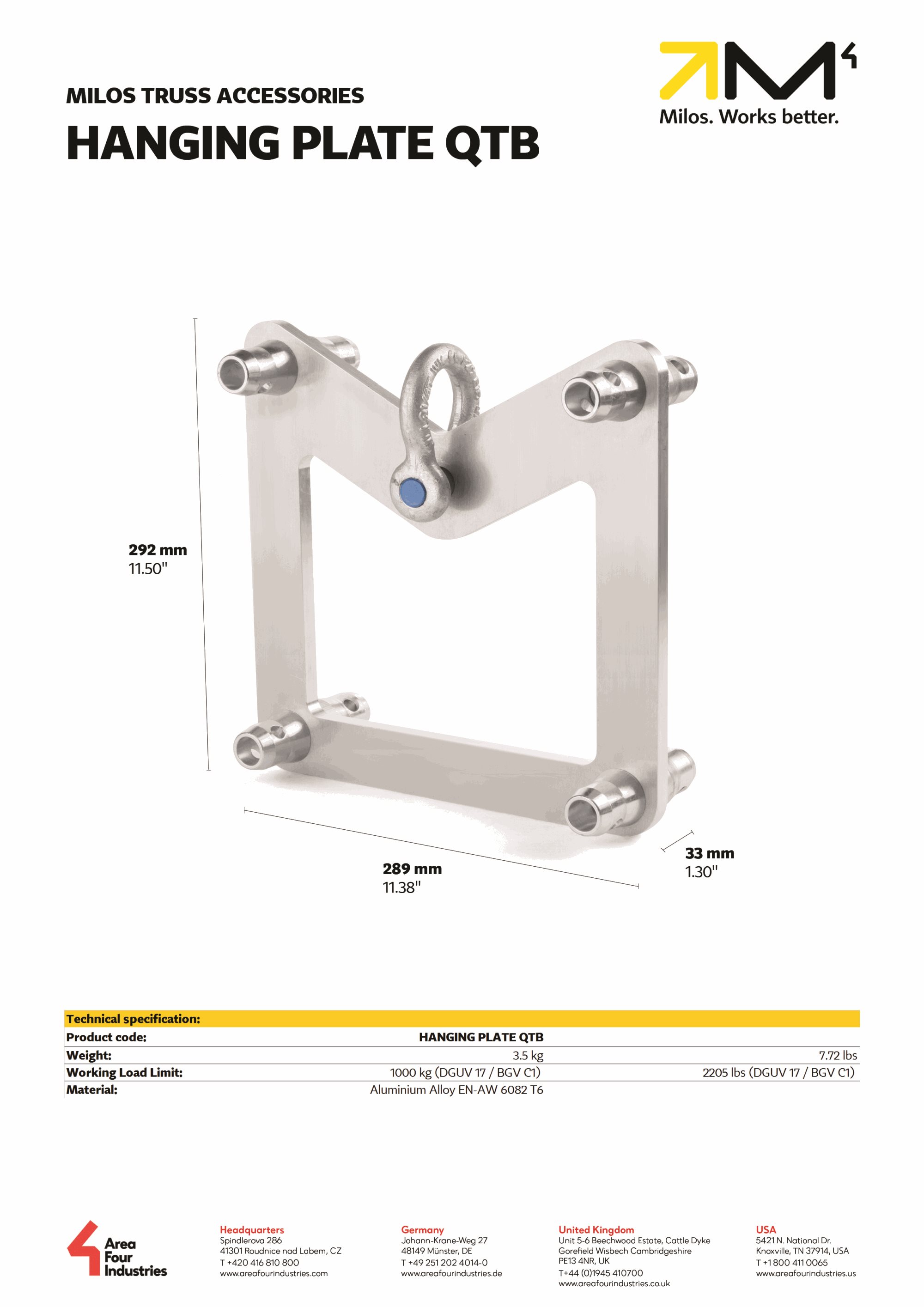

Technical information

Code
Hanging Plate QTB
Width
289 mm
Height
292 mm
Max. SWL
1000 kg (DGUV 17 / BGV C1)
Self Weight
3.5 kg

Basic info

Description

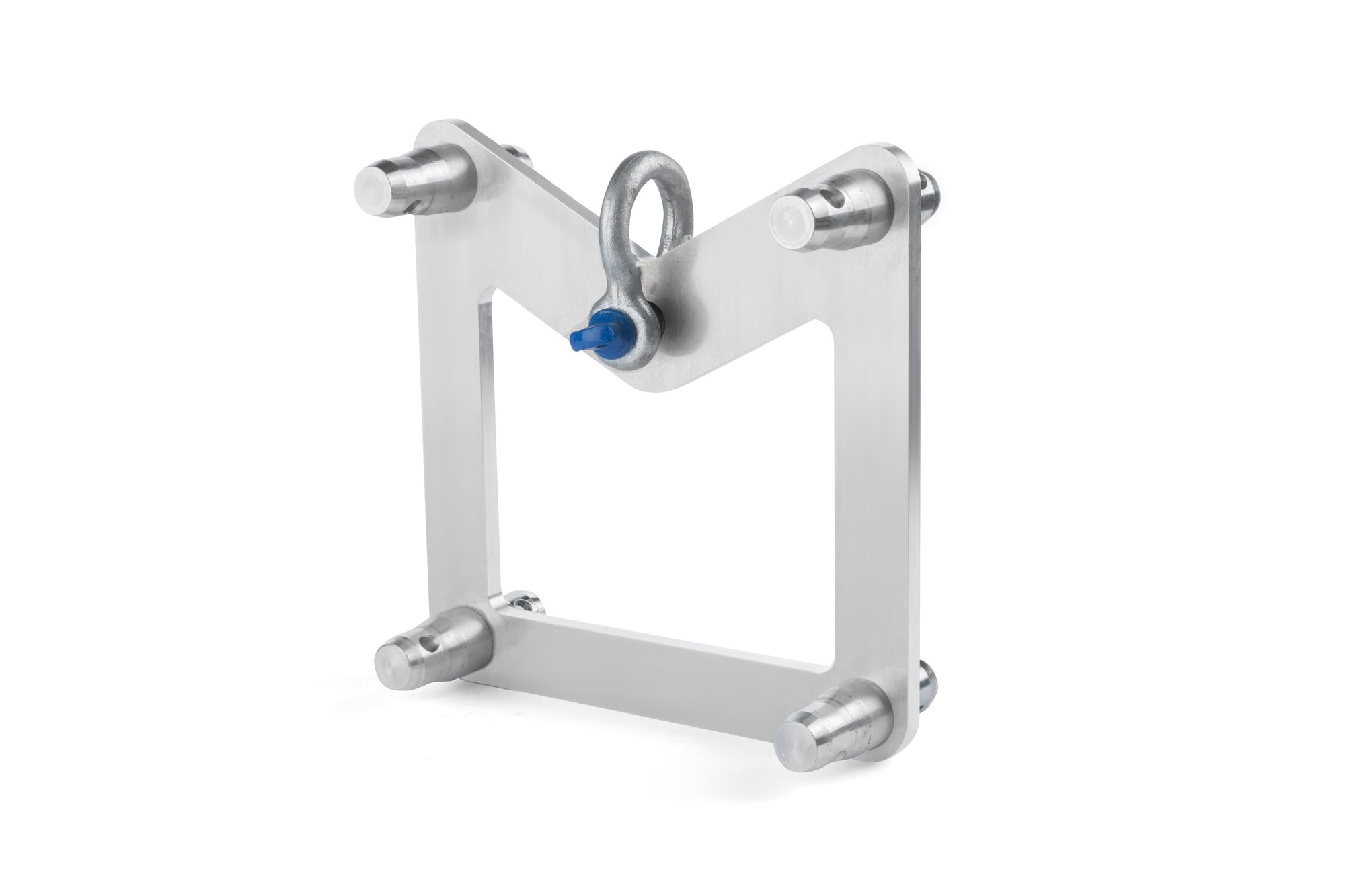

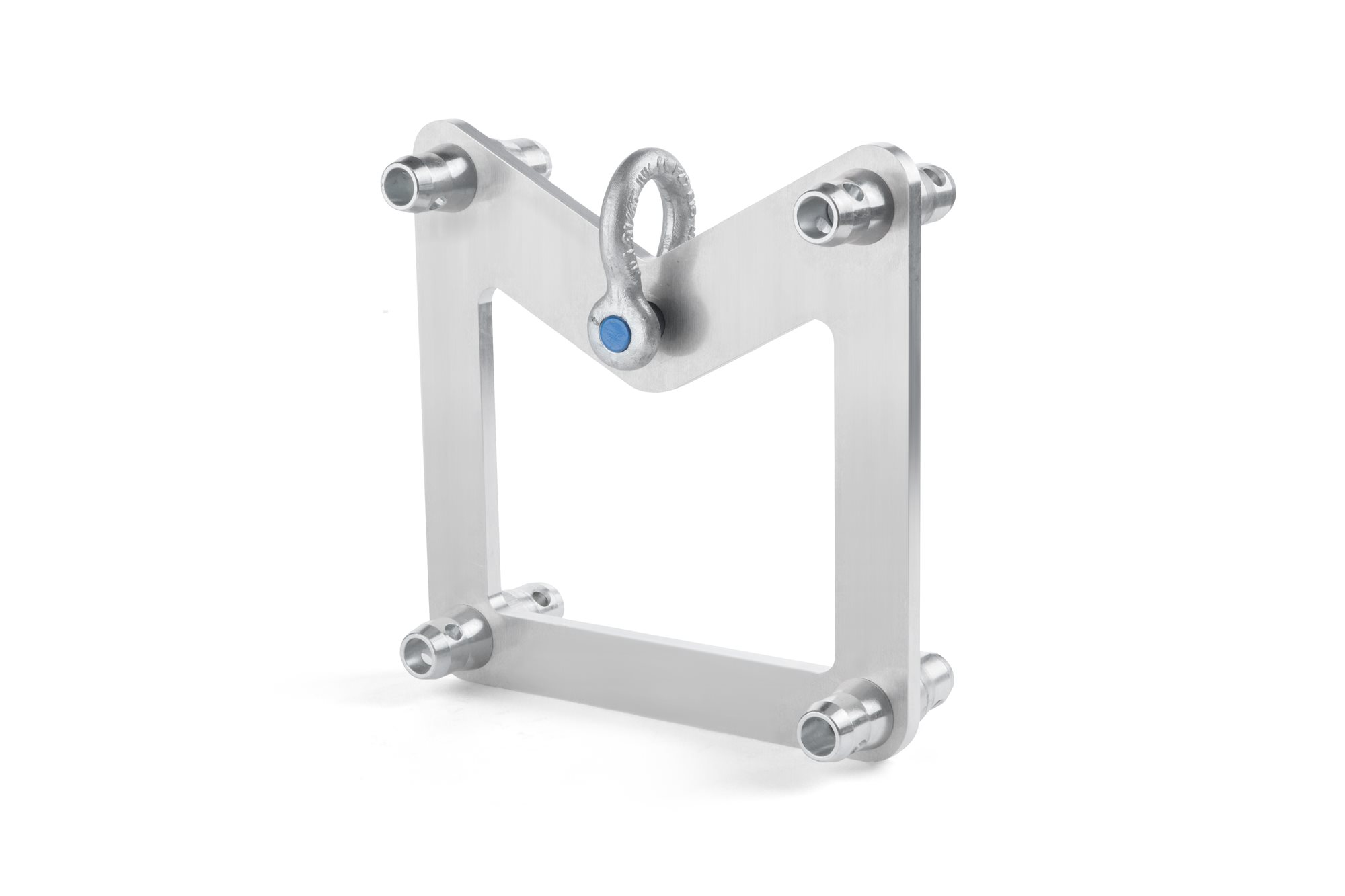

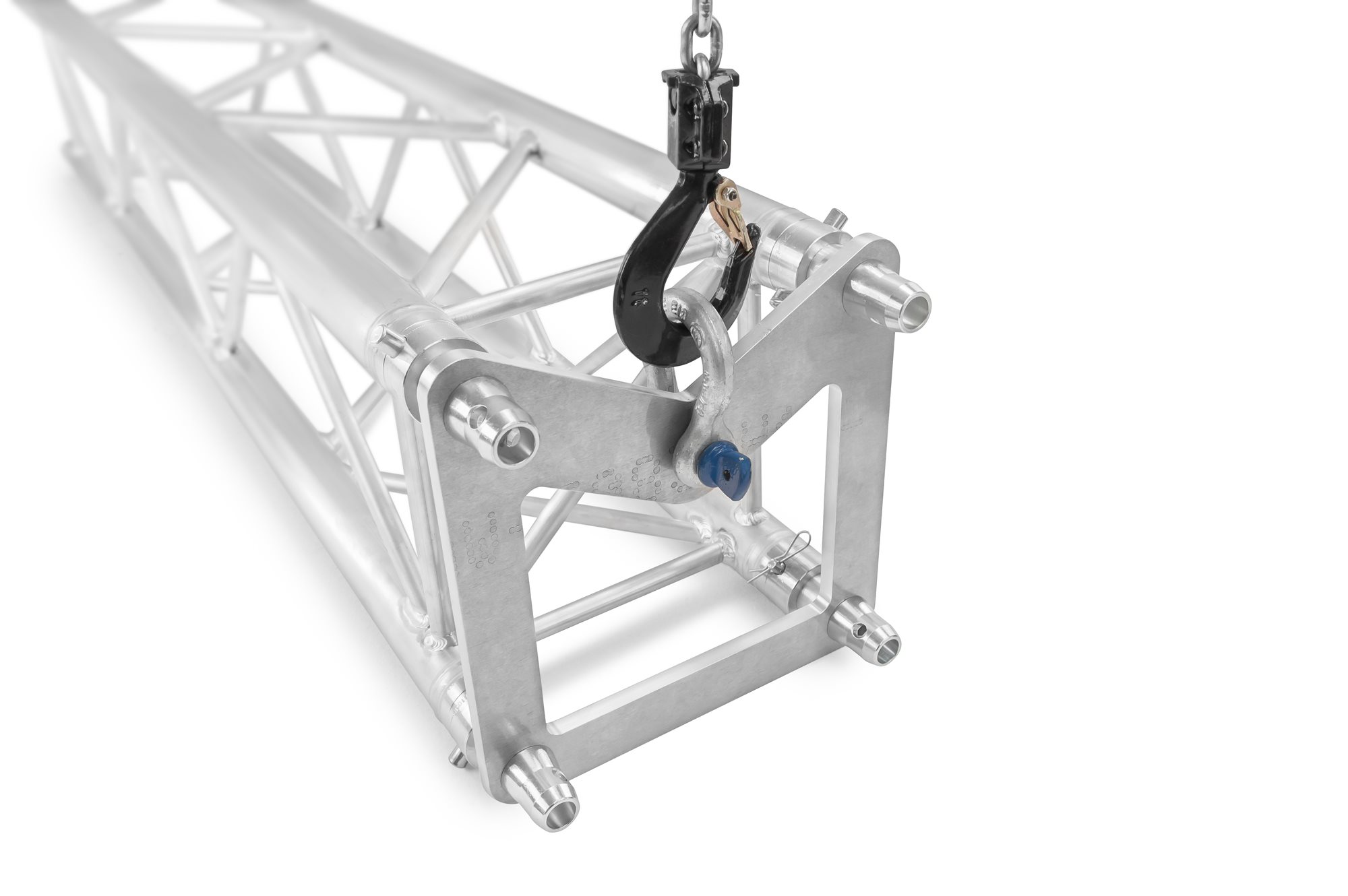

The new MILOS Hanging Plate QTB allows for the horizontal hanging of MILOS 290 and 390 series quatro truss at height. Thanks to its unique "drop hook" design, you experience no loss of headroom so your truss can be lifted as high as possible.

Key benefits

  • "Drop Hook" design for maximum headroom
  • Complies with DGUV 17 / DGUV ref. 215-313 for overhead loads (double safe working load co-efficients)
  • CE certified in accordance with machine directive 2006/42/EC
  • Compatible with MILOS 290 and 390 series truss
